Description
Greenough Zoom Stereo Microscope for Materials and Life Sciences
ZX85 Series Greenough Zoom Stereo Microscope is a precision and versatility in stereo microscopy. Experience the epitome of high-precision examination and 3D imaging with the ZX85 series stereo microscopes. Specifically engineered for your most demanding applications, these exceptional zoom microscopes provide unparalleled accuracy and clarity. Whether analyzing material surfaces or observing and preparing biological samples, the ZX85 is your gateway to comprehensive insights.
Features
1. Binocular and trinocular heads with HWF 10x/23mm eyepiecesfor comfortable and immersive viewing experiences.
2. Double 3W LED illumination, ensuring optimal illumination for your specimens.
3. Large working distance, allowing ample space for sample manipulation and preparation.
4. Zoom ratio of 1:8.5, offering a remarkable magnification range from 6.5x to 55x. Capture the finest details and explore the microscopic world with precision.
5. Ergonomic stands designed to provide optimal comfort during extended observation sessions.
6. Configurations available with magnification capabilities up to 220x, catering to a wide range of applications.
7. Compliance with rigorous international standards for safety and quality.
ZX85 Zoom Body
1. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
2. Binocular or trinocular heads with 45° inclined tubes, the interpupillary distance is adjustable between 54 and 75 mm
3. Both eyepieces have ± 5 diopter adjustments
4. Extended Wide Field WF 10x eyepieces with 23 mm field of view and adjustable diopter on both eyepieces
5. Zoom objective magnification from 0.65x to 5.5x (Standard microscope magnification from 6.5x to 55x based on 10x eyepieces), with zoom ratio 8.46:1, the field of view from 33 mm to 4.9 mm, and Working distance of 110 mm
Objectives & Magnifications
The ZX85 stereo microscopes are supplied with a large choice of objectives and stands. Long working distances enable working comfortably under the microscope. Ideal for education, laboratories and industry.
1. Optional Auxiliary lenses 0.3x, 0.4x, 0.5x, 0.7x, 0.75x, 1.5x and 2.0x are available, protection glass cover is also available.
2. Optional eyepieces 10x, 20x, 25x & 30x are available
3. Magnification can be extended from 1.95x to 330x by using optional auxiliary objective lenses & eyepieces
The below table is listed based on standard eyepeices 10x/23mm
| Zoom Indication | Auxiliary lens 0.3x | Auxiliary lens 0.4x | Auxiliary lens 0.5x | Auxiliary lens 0.75x | Objective 1x | Auxiliary lens 1.5x | Auxiliary lens 2x | |||||||
| WD 287 mm | WD 220 mm | WD 183 mm | WD 105 mm | (standard) WD 110 mm | WD 53 mm | WD 34 mm | ||||||||
| Total mag. | FoV in mm | Total mag. | FoV in mm | Total mag. | FoV in mm | Total mag. | FoV in mm | Total mag. | FoV in mm | Total mag. | FoV in mm | Total mag. | FoV in mm | |
| 0.65x | 1.95 | 117.9 | 2.6 | 88.5 | 3.25 | 70.8 | 4.9 | 47.2 | 6.5 | 35.4 | 9.8 | 23.6 | 13.0 | 17.7 |
| 1.0x | 3.0 | 76.7 | 4.0 | 57.5 | 5.0 | 46.0 | 7.5 | 30.7 | 10.0 | 23.0 | 15.0 | 15.3 | 20.0 | 11.5 |
| 1.5x | 4.5 | 51.1 | 6.0 | 38.3 | 7.5 | 30.7 | 11.3 | 20.4 | 15.0 | 15.3 | 22.5 | 10.2 | 30.0 | 7.7 |
| 2.0x | 6.0 | 38.3 | 8.0 | 28.8 | 10.0 | 23.0 | 15.0 | 15.3 | 20.0 | 11.5 | 30.0 | 7.7 | 40.0 | 5.8 |
| 2.5x | 7.5 | 30.7 | 10.0 | 23.0 | 12.5 | 18.4 | 18.8 | 12.3 | 25.0 | 9.2 | 37.5 | 6.1 | 50.0 | 4.6 |
| 3.0x | 9.0 | 25.6 | 12.0 | 19.2 | 15.0 | 15.3 | 22.5 | 10.2 | 30.0 | 7.7 | 45.0 | 5.1 | 60.0 | 3.8 |
| 3.5x | 10.5 | 21.9 | 14.0 | 16.4 | 17.5 | 13.1 | 26.3 | 8.8 | 35.0 | 6.6 | 52.5 | 4.4 | 70.0 | 3.3 |
| 4.0x | 12.0 | 19.2 | 16.0 | 14.4 | 20.0 | 11.5 | 30.0 | 7.7 | 40.0 | 5.8 | 60.0 | 3.8 | 80.0 | 2..9 |
| 4.5x | 13.5 | 17.0 | 18.0 | 12.8 | 22.5 | 10.2 | 33.8 | 6.8 | 45.0 | 5.1 | 67.5 | 3.4 | 90.0 | 2.6 |
| 5.0x | 15.0 | 15.3 | 20.0 | 11.5 | 25.0 | 9.2 | 37.5 | 6.1 | 50.0 | 4.6 | 75.0 | 3.1 | 100.0 | 2.3 |
| 5.5x | 16.5 | 13.9 | 22.0 | 10.5 | 27.5 | 8.4 | 41.3 | 5.6 | 55.0 | 4.2 | 82.5 | 2.8 | 110.0 | 2.1 |
Stands & Arms
The ICOE stands can be combined with both ZX85 series binocular and trinocular zoom body. Choose your system from the precombined sets or combine a microscope head with the stand of your choice

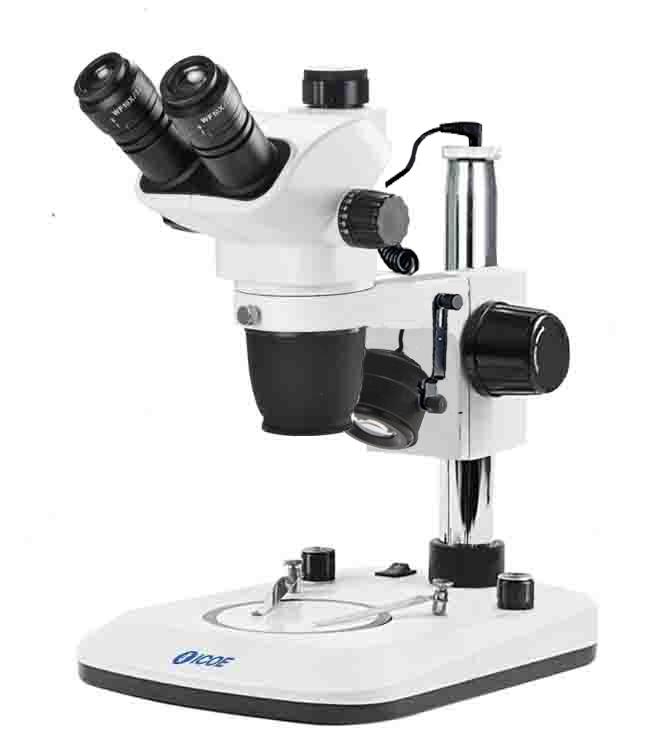

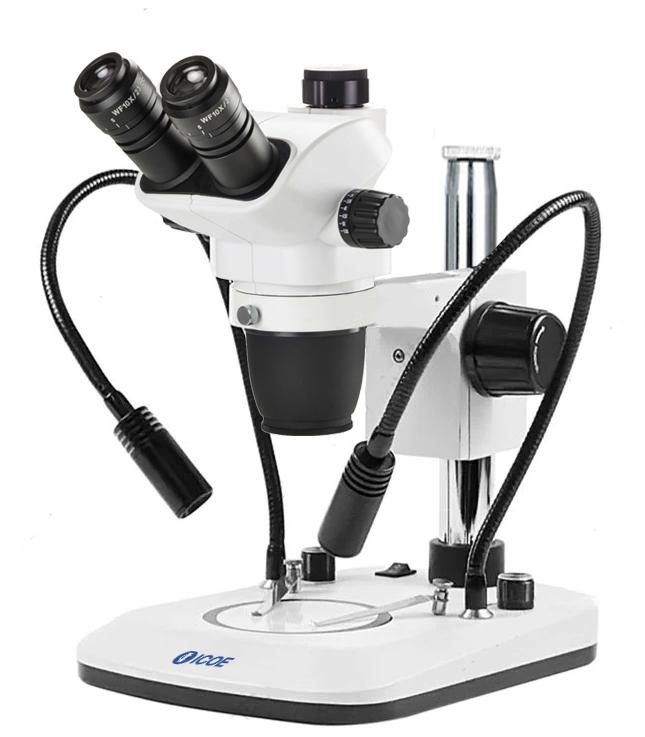

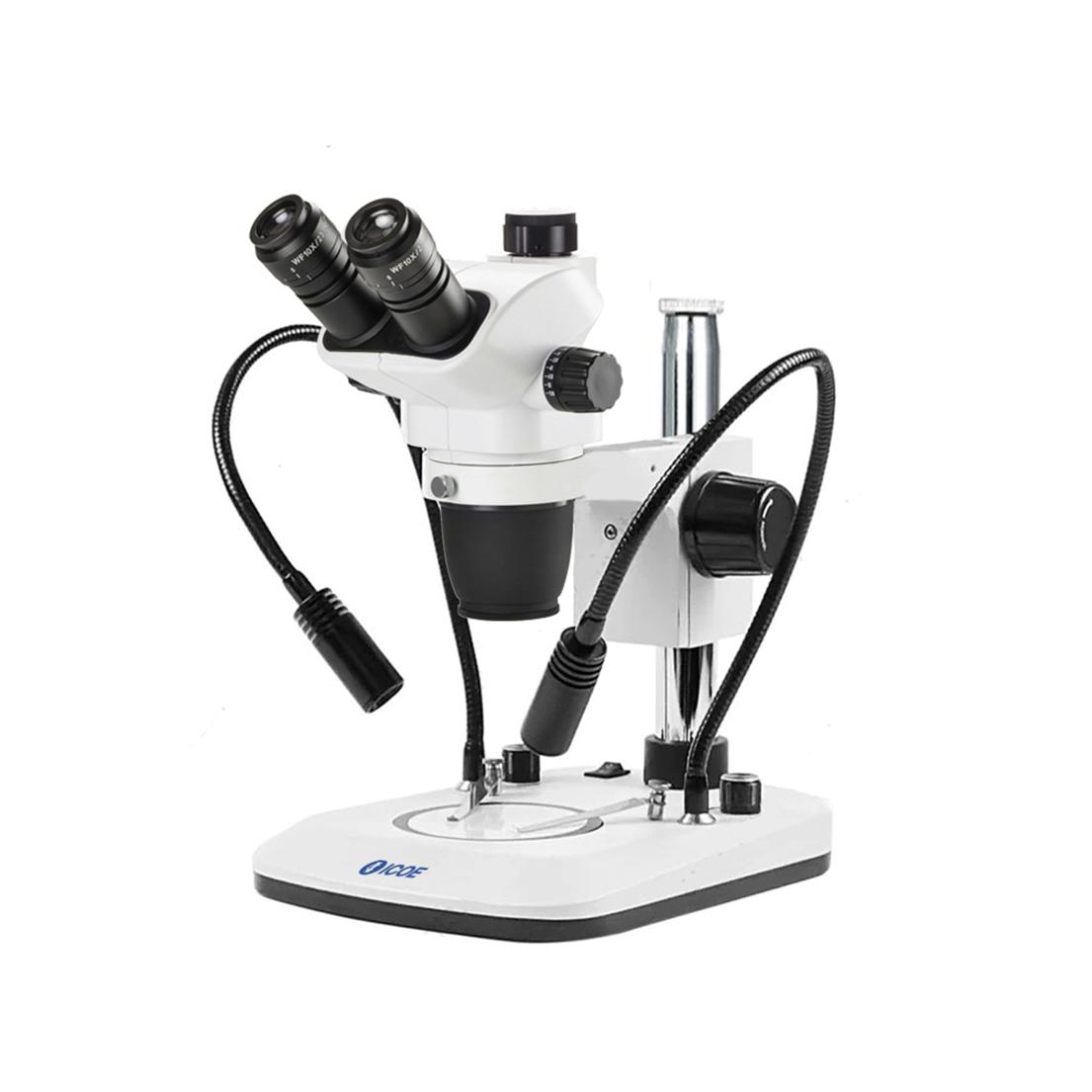

| ZX85T-BL8 | ZX85T-BL8L |

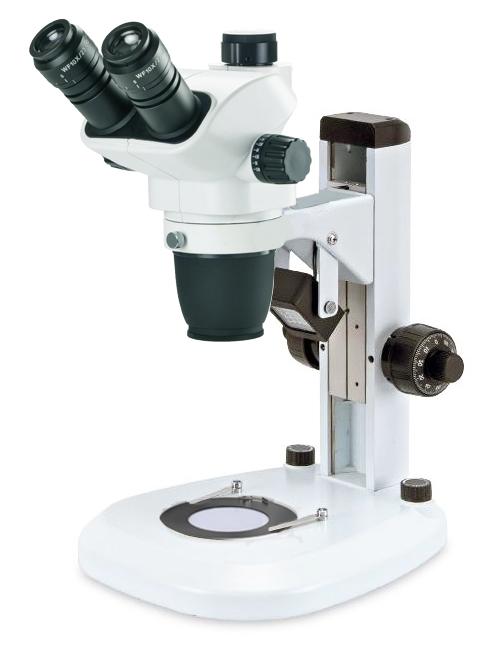

ZX85T-CY2 |
|
|
|
| BL8 stand is an ergonomic flat pillar stand, including incident and transmitted 3 W LED illumination, built-in 100-240 V power supply. Both illumination intensities can be adjusted separately. Maximum object height 148 mm. Including 76 mm head holder | BL8L stand is an ergonomic pillar stand including two incident LED illuminations with selfsustaining goosenecks and one transmitted 3 W LED illumination. Built-in 100-240 V power supply. Maximum object height 148 mm. Including 76 mm head holder | CY2 stand is an ergonomic flat rack and pinion stand, including incident and transmitted 3 W LED illumination, built-in 100-240 V power supply. Both illumination intensities can be adjusted separately. Maximum object height 158 mm. Including 76 mm head holder |
