Description
Features

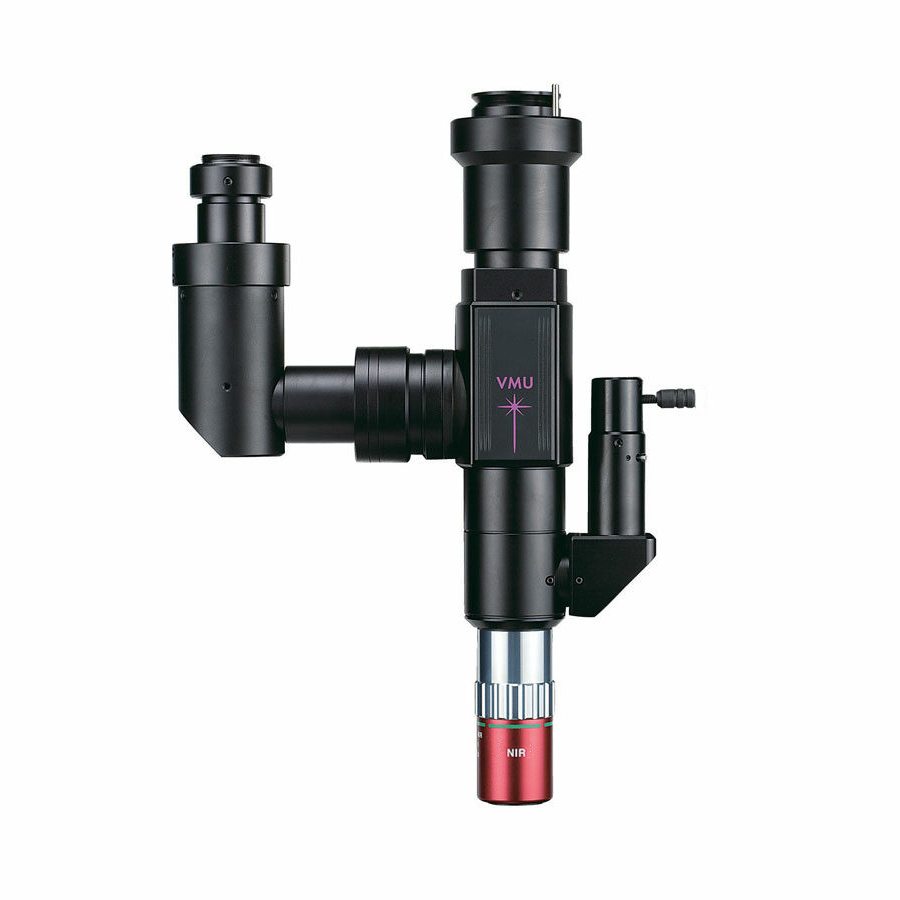

This Video Microscope Unit is suitable for observing a wide range of objects such as metal, resin, printed surfaces, fine details, etc. The VMU is compatible with YAG lasers for cutting, trimming, repair of and making of IC wiring, removing and processing thin-film and repair of color filters for defect repairs. The VMU is available for dual-camera (high and low magnification) observation. The VMU’s compact design allows for use in environments where high-power observation is required and space is limited.
1). The optical system can accommodate ultra-long working distance objectives and provides correction for the wide range of wavelengths
2). The fiber-optic reflected illumination (required for the light source) keeps the workpiece free from thermal expansion caused by heat
3). Telecentric reflective illumination system with aperture diaphragm is ideal for image processing applications that require even lighting
4). Compatible with infrared optical system for internal observation of IC packages and spectral characteristics analysis using an infrared source and camera
5). Available with a laser mount and revolving nosepiece (objective mount)
