Description
Descriptions

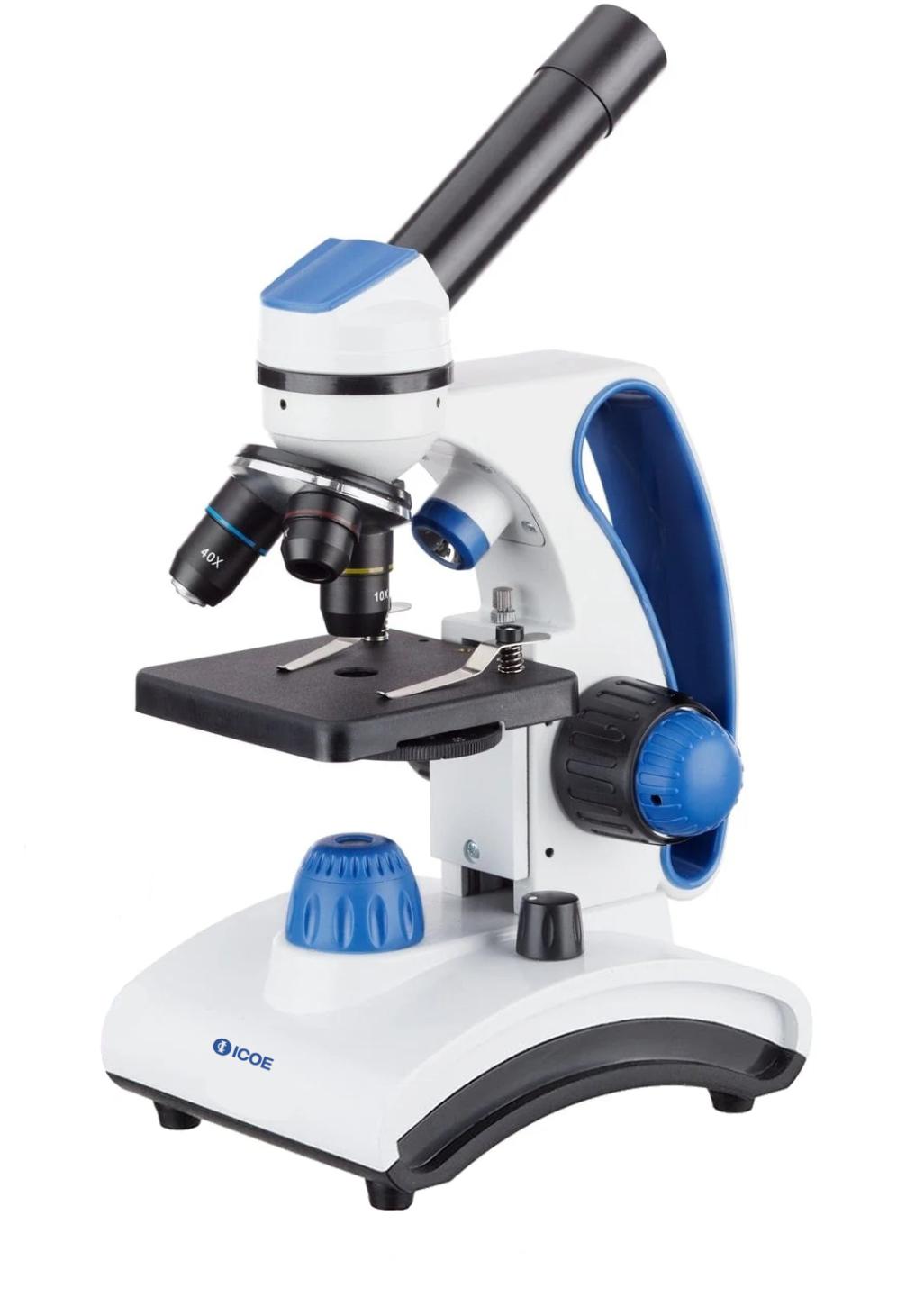

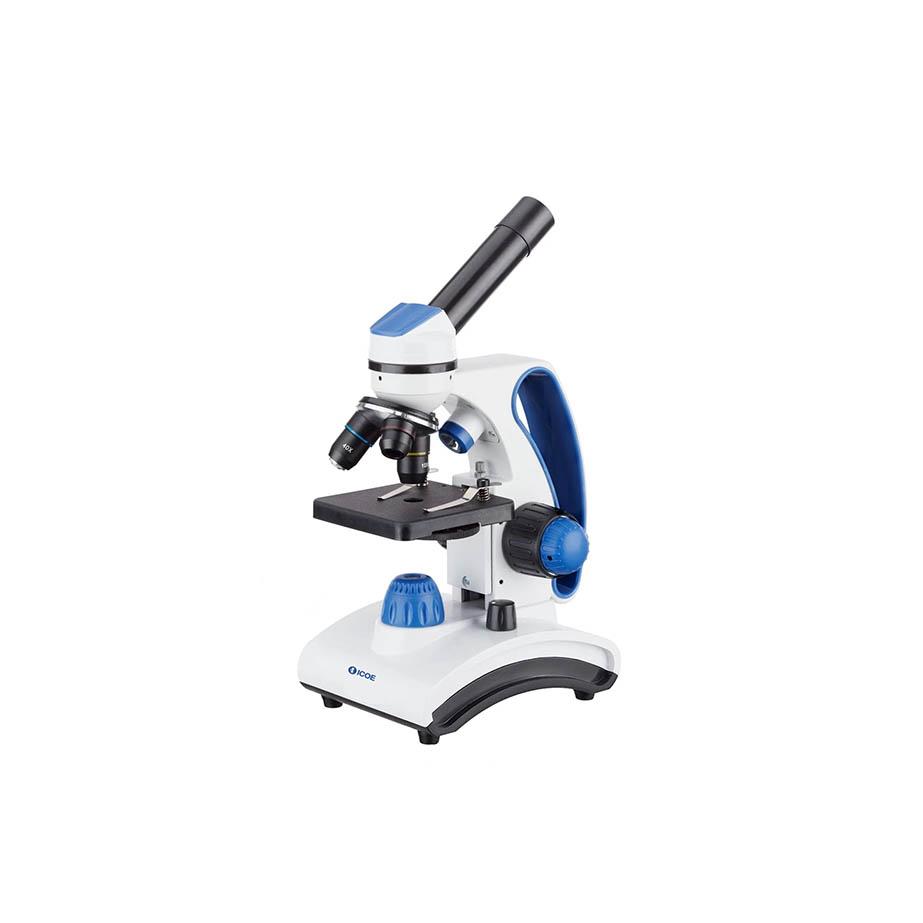

SX16A student microscope has everything necessary for the middle school or high school classroom. This is a proven design with student proof features such as locked-in eyepieces, and a durable disk diaphragm. Clear DIN optics, coarse and fine focus, illumination and stage options make this scope a guaranteed winner. Included accessories: Dust cover, one fuse, spare bulb, manual and warranty card.
Product Details
Triple Nosepiece for Achromatic Objectives 4X, 10X, 40X (Spring), Plain stage with paired clips, stage size 105mmx105mm
Product Model
Product Specifications
| Model | SX16A |
| Viewing head | Monocular head, inclined at 45°, 360° Rotation |
| Eyepiece | WF10x/18 eyepiece, 1pc |
| Objective | Achromatic objective 4x, 10x, 40x |
| Condenser | N.A 0.65 Abbe Condenser with Φ2-Φ30mm iris diaphragm, Φ32 filter |
| Nosepiece | Triple nosepiece |
| Stage | Plain stage with slide clip 105x105mm |
| Illumination | 1W LED illumination |
| Focusing System | Coaxial coarse adjustment |
| Dimensions | 356(H)x178(L)x134(W)mm |
Optional Accessories
| Cat No. | Descriptions | Picture |
| M11011001 | Eyepiece 25x | |
| M11011005 | AAA batteries | |
| M11011003 | Digital Eyepiece 2mp | |
| M11011004 | Digital Eyepiece 5mp |
