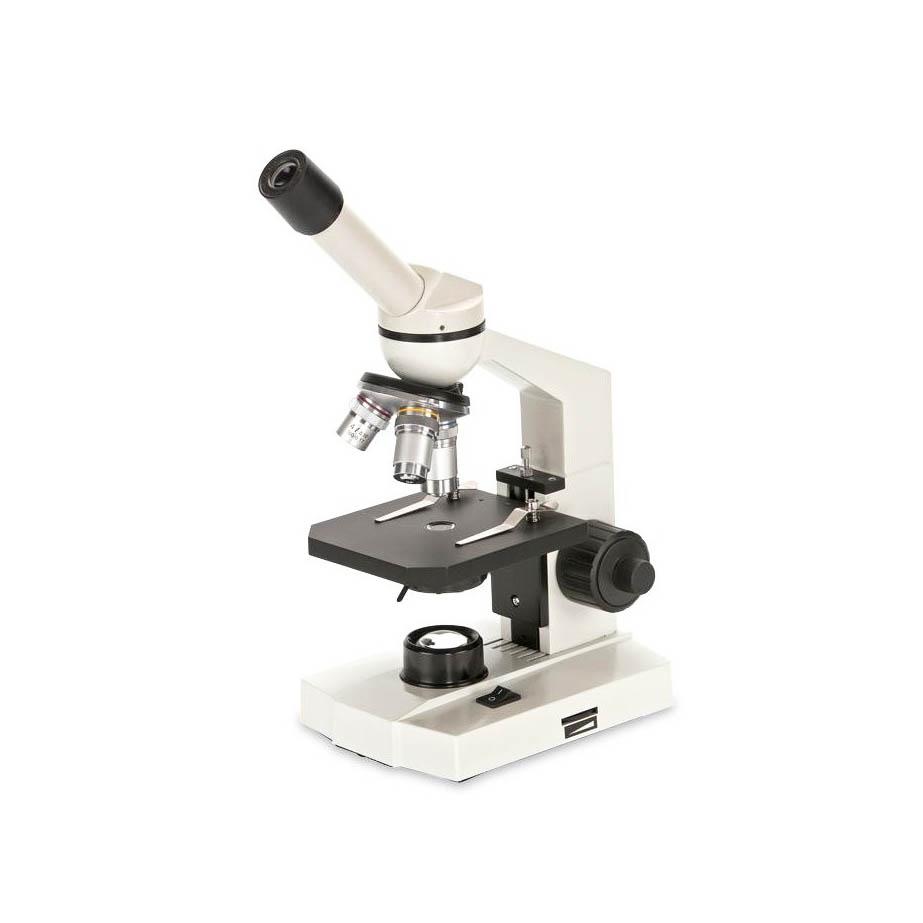

The IT10 series is a great middle and high school student microscope. This microscope is slightly smaller in size for young scientists without sacrificing high quality glass optics. The student microscope includes rugged metal components and has been built with student proofing features to eliminate damage to microscope and loss of parts.
ICOE makes 6 standard models for you: IT10A, IT10C, IT10D, IT10E (Binocular), IT10Gi (Digital head, monocular), IT10Hi (Digital head, binocular). You may refer to specifications of IT10A, IT10C, IT10D, IT10E in below “Specifications” section. “IT10Gi” & “IT10Hi” can be referred in classification of “Digital Microscope”.
Product Details
• Variable LED intensity transmitted illumination:
- Transmitted illumination can be found in this product as it has a LED light of which the intensity can be customized depending on the situation. It also lasts much longer than a typical halogen bulb.
• Coarse and fine focusing:
- Coaxial coarse & fine focus knobs on both sides. This ergonomic designs helps adjusting the focus easily to achieve your desired result.
• 6 different objectives & few eyepieces available & optional:
- ICOE compound biological microscope offers many level magnifications from 40X to 2000X. The microscope has 4X, 10X, 20X, 40X, 60X and 100X achromatic DIN objectives and Eyepiece WF10x, WF5x, P16x, WF20x, available or optional.
• Mechanical stage with adjustment handle:
- Apart from Plain stage with slide clips/with attachable mechanical stage, our model IT10E adopts the double layer mechanical stage gives you full movement of your sample for scanning purposes, or centering purposes. So instead of just the clips moving around on the stage, the entire stage moves in the X, Y, and Z dimensions. So, your slide won’t slip off in any way when you’re trying to locate your point of interest on your slide. This mechanical stage is optional for the IT10A, IT10C, IT10D as well.
Specifications
Model: IT10A
- • Viewing head: Monocular head, 45° inclined, 360° Rotation
- • Nosepiece: Triple revolving nosepiece
- • Eyepiece: Eyepiece WF 10X/18 mm wide field
- • Objectives: Achromatic DIN objective 4x/0.10
- Achromatic DIN objective 10x/0.25
- Achromatic DIN objective 40x/0.65, spring loaded
- • Stage: Plain stage with slide clips 110×120mm
- • Focusing: Coaxial coarse and fine adjustment, range 10 mm
- • Condenser: Single lens NA 0.65 with iris diaphragm
- • Illumination: 1W LED, brightness adjustable
- • Supplied with: Dust cover, spare fuse
- • Power: 100-220V, 50/60Hz, output DC 7.5V
- • Dimensions: 180x130x340mm, net weight 2.0 kgs
- • Packing: Styrofoam shelve in a cardboard box
Model: IT10C
- • Viewing head: Monocular head, 45° inclined, 360° Rotation
- • Nosepiece: Triple revolving nosepiece
- • Eyepiece: Eyepiece WF 10X/18 mm wide field
- • Objectives: Achromatic DIN objective 4x/0.10
- Achromatic DIN objective 10x/0.25
- Achromatic DIN objective 40x/0.65, spring loaded
- • Stage: Plain stage with attachable mechanical stage 110×120 mm, moving range 60x30mm
- • Focusing: Coaxial coarse and fine adjustment, range 10 mm
- • Condenser: Abbe bright-field condenser, N.A. 1,2, with iris diaphragm, spiral adjustment for condenser
- • Illumination: 1W LED, brightness adjustable
- • Supplied with: Dust cover, spare fuse
- • Power: 100-220V, 50/60Hz, output DC 7.5V
- • Dimensions: 180x130x340mm, net weight 2.1 kgs
- • Packing: Styrofoam shelve in a cardboard box
Model: IT10D
- • Viewing head: Monocular head, 45° inclined, 360° Rotation
- • Nosepiece: Triple revolving nosepiece
- • Eyepiece: Eyepiece WF 10X/18 mm wide field
- • Objectives: Achromatic DIN objective 4x/0.10
- Achromatic DIN objective 10x/0.25
- Achromatic DIN objective 40x/0.65, spring loaded
- • Stage: Double layers mechanical stage 110×120mm/70×20mm
- • Focusing: Coaxial coarse and fine adjustment, range 10 mm
- • Condenser: Abbe NA 1.2 with iris diaphragm & blue filter, rack and pinion adjustment for condenser
- • Illumination: 1W LED, brightness adjustable
- • Supplied with: Dust cover, spare fuse
- • Power: 100-220V, 50/60Hz, output DC 7.5V
- • Dimensions: 180x130x340mm, net weight 2.2 kgs
- • Packing: Styrofoam shelve in a cardboard box
Model: IT10E
- • Viewing head: Sliding Binocular Head, Inclined at 45°, 360° Rotation
- • Nosepiece: Quadruple revolving nosepiece
- • Eyepiece: Eyepiece WF 10X/18 mm wide field
- • Objectives: Achromatic DIN objective 4x/0.10
- Achromatic DIN objective 10x/0.25
- Achromatic DIN objective 40x/0.65, spring loaded
- Achromatic DIN objective 100x/1.25, spring loaded, oil
- • Stage: Double layers mechanical stage 110×120mm/70×20mm
- • Focusing: Coaxial coarse and fine adjustment, range 10 mm
- • Condenser: Abbe NA 1.2 with iris diaphragm & blue filter,
- rack and pinion adjustment for condenser
- • Illumination: 1W LED, brightness adjustable
- • Supplied with: Dust cover, spare fuse
- • Power: 100-220V, 50/60Hz, output DC 7.5V
- • Dimensions: 180x130x340mm, net weight 2.3 kgs
- • Packing: Styrofoam shelve in a cardboard box
Options
- • Viewing head: Sliding binocular head, inclined at 45°, 360° Rotation
- • Eyepiece WF5×, P16×, WF20x; Eyepiece WF10× with pointer;
- • Quadruple nosepiece
- • Achromatic DIN objective 20×, 60×, 100x
- • Stage: Plain stage with slide clips 110×120mm
- • Stage: Double layers mechanical stage 110×120mm/70×20mm
- • Condenser: Abbe NA 1.2 with iris diaphragm & blue filter, rack and pinion adjustment for condenser
- • Reflecting mirror
- • Package: Wooden case & carton dimension 28×22×41cm
- • Package: Styrofoam & Wooden case & carton, dimension 28×20×40cm
