Specifications

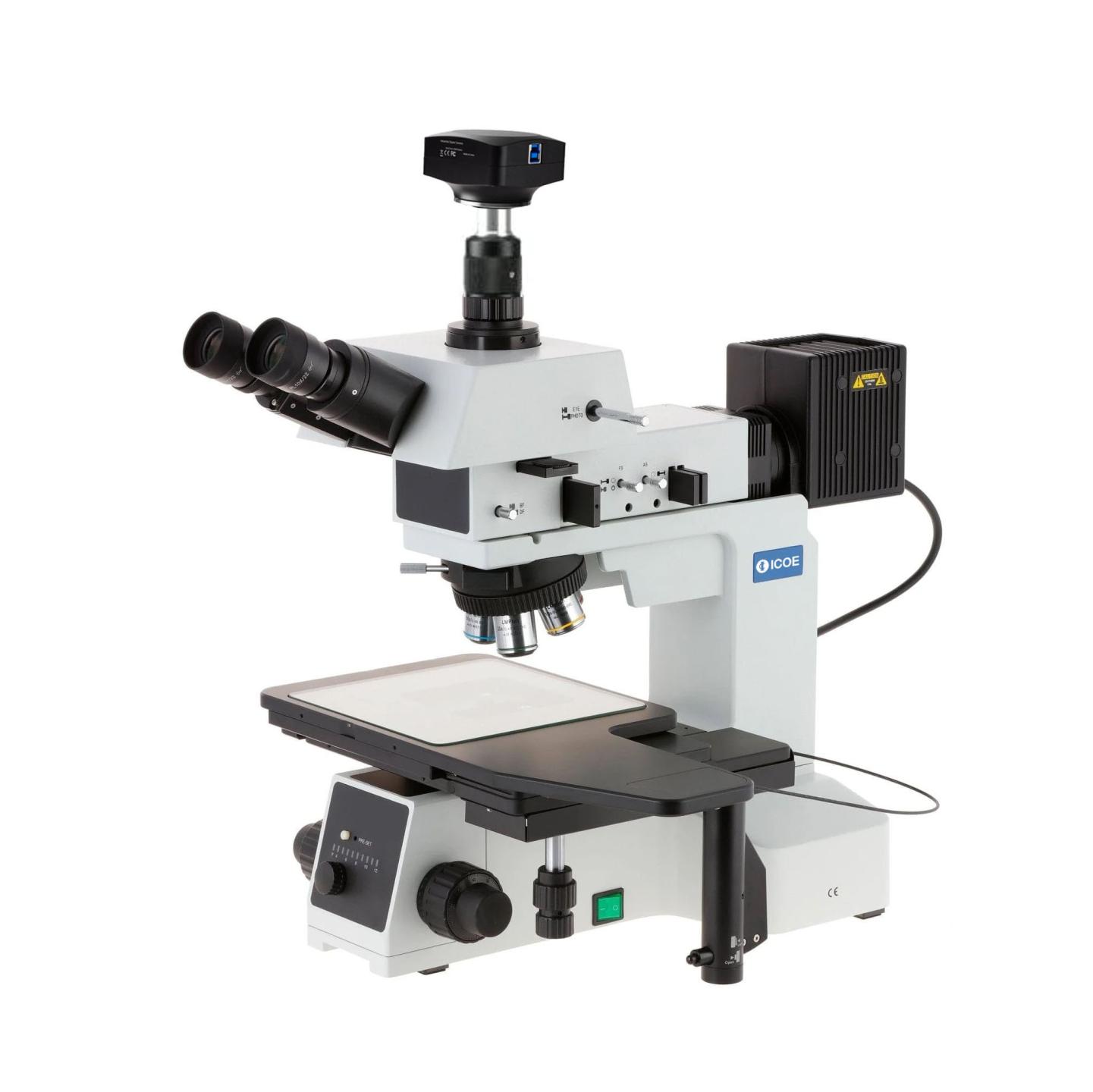

| Model | HFM6R | HFM6TR | |
| Viewing head | 5°~35° inclined, inverted image, infinity hinged trinocular observation tube, pupil distance adjustment range 50-76mm, three-stage diopters, binocular/trinocular = 0/100, 50/50, 100/0 | ● | ● |
| 30° inclined, erect image, infinity hinged trinocular observation tube, pupil distance adjustment range 50-76mm, diopters, binocular/trinocular = 0/100, 100/0 | ○ | ○ | |
| 30° inclined, inverted image, infinity hinged trinocular observation tube, pupil distance adjustment range 50-76mm, three-stage diopters, binocular/trinocular = 0/100, 20/80, 100/0 | ○ | ○ | |
| Eyepiece | High point eyepiece, wide-field plan eyepiece PL10X/22mm | ●● | ●● |
| High point eyepiece, wide-field plan eyepiece PL10X/22mm with reticle | ○ | ○ | |
| High point eyepiece, wide-field plan eyepiece PL10X/22mm, diopter adjustment | ○ | ○ | |
| High point eyepiece, wide-field plan eyepiece PL10X/22mm with reticle, diopter adjustment | ○ | ○ | |
| High point eyepiece, wide-field plan eyepiece PL10X/23mm, diopter adjustment | ○ | ○ | |
| High point eyepiece, wide-field plan eyepiece PL15X/16mm | ○ | ○ | |
| Objective | LWD plan achromatic metallurgical objective 5X-DIC,LMPL5X/0.15 WD11mm | ● | ● |
| LWD plan achromatic metallurgical objective 10X-DIC,LMPL10X/0.3 WD9.5mm | ● | ● | |
| LWD plan achromatic metallurgical objective 20X-DIC,LMPL20X/0.45 WD3.4mm | ● | ● | |
| LWD plan achromatic metallurgical objective 50X,LMPLFL50X/0.55 WD7.5mm | ● | ● | |
| LWD plan achromatic metallurgical objective 100X,LMPLFL100X/0.8 WD2.1mm | ○ | ○ | |
| Nosepiece | Reversed quintuple nosepiece, with DIC slot | ● | ● |
| Main frame | Microscope frame body for reflected observation with halogen lamp, front low-hand coaxial focusing mechanism, coarse adjustment stroke 33mm, fine adjustment accuracy 0.001mm. With adjustment tension and random upper limit device to prevent sliding. Built-in 100-240V wide voltage system, 12W/100W halogen lamp room, with brightness setting button and reset button. | ● | |
| Microscope frame body for reflected & transmitted observations with halogen lamp, front low-hand coaxial focusing mechanism, coarse adjustment stroke 33mm, fine adjustment accuracy 0.001mm. With adjustment tension and random upper limit device to prevent sliding. Built-in 100-240V wide voltage system, 12W/100W halogen lamp room, with brightness setting button and reset button. | ● | ||
| Microscope frame body for reflected observation with LED lamp front low-hand coaxial focusing mechanism, coarse adjustment stroke 33mm, fine adjustment accuracy 0.001mm. With adjustment tension and random upper limit device to prevent sliding. Built-in 100-240V wide voltage system, 12V 10W LED lamp room, with brightness setting button and reset button. | |||
| Microscope frame body for reflected & transmitted observations with LED lamp, front low-hand coarse and fine coaxial focusing mechanism, coarse adjustment stroke 33mm, fine adjustment accuracy 0.001mm. With adjustment tension and random upper limit device to prevent slipping. Built-in 100-240V wide voltage system, 12V 10W LED lamp room, upper and lower lights are independently controllable | |||
| Stage | 6” three layer mechanical stage, moving range 158x 158mm, with glass stage, right hand position X/Y moving wheel with clutch handle for fast movement. Platform area 445X240mm | ● | ● |
| Illumination | Halogen lamp house, center pre-set, with halogen lamp 12V/100W | ● | ● |
| LED lamp house, center pre-set, with LED lamp 12V/10W | ○ | ○ | |
| Polarization | Reflective polarizing lens set, including polarizing lens set, 360 degree rotating analyzer plate | ● | ● |
| Filter | Interference filter, Blue(Reflected)≤480nm | ○ | ○ |
| Interference filter, Green(Reflected)520nm-570nm | ○ | ○ | |
| Interference filter, Red(Reflected)630nm-750nm | ○ | ○ | |
| Interference filter, White balance filter(Reflected) | ○ | ○ | |
| DIC attachment | U-DICR DIC attachment | ○ | ○ |
| C mount adpater | 0.35X C-mount, with focusing adjustment | ○ | ○ |
| 0.5X C-mount, with focusing adjustment | ○ | ○ | |
| 0.65X C-mount, with focusing adjustment | ○ | ○ | |
| 1X C-mount, with focusing adjustment | ○ | ○ | |
| Micrometer | High precision micrometer, scale value: 0.01mm | ○ | ○ |
| Ordinary micrometer, scale value: 0.01mm | ○ | ○ | |
