Description
Introduction

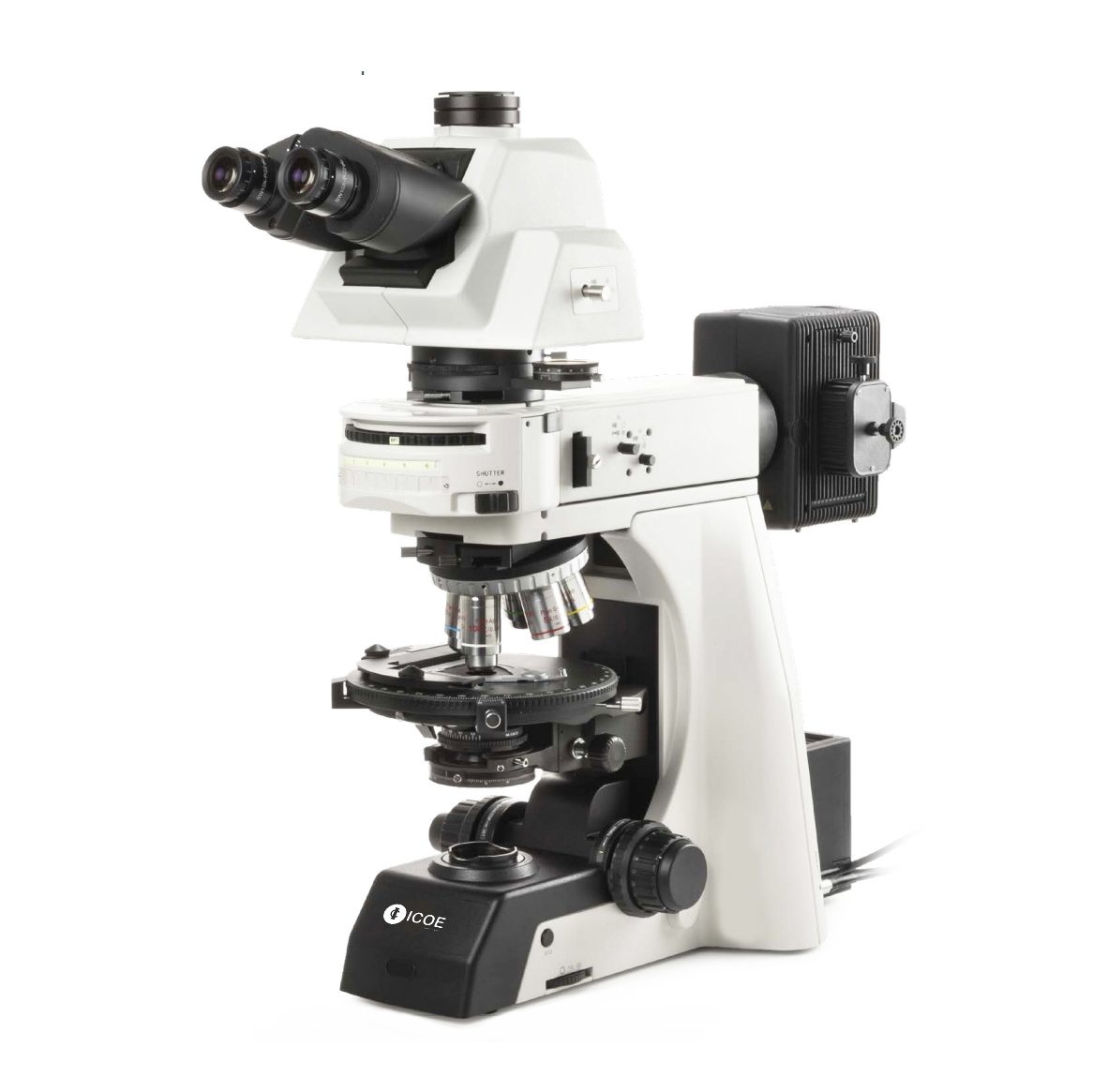

Traditional polarizing microscopes are used in geology, mineralogy, metallography and geological exploration. However, with the deepening of various disciplines, more and more fields have put forward demands for polarizing microscopes, including not only industrial fields such as construction, material analysis, semiconductor production and detection, but also natural science fields such as forensic science, medical inspection and biological research.At the same time, the application space and extensibility of microscopes are required to be higher, and customized microscopes with higher image clarity, better contrast and higher efficiency are needed. Polarizing microscope HemeraPL is powerful and comfortable.
It is your reliable partner in scientific research and industrial inspection. It can realize many kinds of observation and provide excellent optical imaging quality.
Highlight
• Brightfield and polarization
• 360° rotatable analyzer and polarizer
• Bertrand lens for conoscopic observation
• Enhanced infinity corrected EIS optical system
• High contrast objectives with minimal aberrations
• Semi-apo strain free plan or plan objectives
• Super wide field SWF 10x/25mm eyepieces
• 100 W halogen illumination
• Center Adjustable Quintuple Nosepiece with DIC slot
Product Features
| Enhanced Infinity Corrected Optical System
The enhanced infinity system (EIS) of the HemeraPL consists of super wide field SFWF 10x25mm eyepieces, high numerical aperture 45mm parfocal objectives. This tube lens reduces the angle of the light rays passing through the optics and as a direct result significantly improves the chromatic aberration corrections and contrast. The objectives with larger diameter enable much higher numerical apertures improving the overall resolving power of the optical system For all these reasons the HemeraPL offers superior optical performance for the most demanding applications
| Eyepiece
• Super wide field SWF 10x/25 mm, Ø30mm tubes
• Extended wide field EWF 10x/22 mm, Ø30mm tubes (optional)
Three extra eyepieces for transmitted illumination:

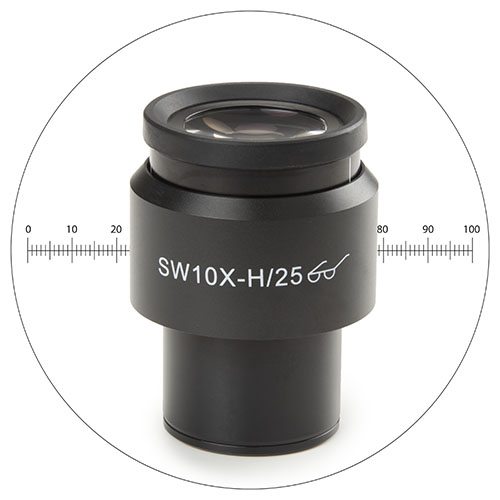

• Super wide field SWF 10x/25 eyepiece with micrometer scale for Ø30mm tubes
• Super wide field SWF 10x/25 eyepiece with crosshairs for Ø30mm tubes
• Super wide field SWF 10x/25 eyepiece with grid for Ø30mm tubes
Three extra eyepieces for reflected illumination:
• Super wide field SWF 10x/22 eyepiece with micrometer scale for Ø30mm tubes
• Super wide field SWF 10x/22 eyepiece with crosshairs for Ø30mm tubes
• Super wide field SWF 10x/22 eyepiece with grid for Ø30mm tubes
| Viewing Head
1). Siedentopf trinocular head
Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces
2). Ergonomic Tilting Trincoular Head
Optional ergonomic 0 to 35° tilting trinocular head supplied with SWF 10x/25 mm eyepieces, interpupillary distance between 47-78 mm and photo tube with a standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces

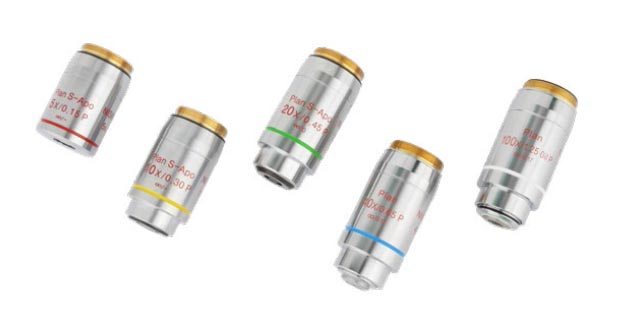

| Objectives – Strain-free Optics Make Imaging More Accurate
With the deepening of the study of polarized light, the accuracy and repeatability of the data are increasingly required. Objective lens and condenser lens, as important components of the microscope, play a vital role in the imaging effect. As a polarizing microscope, not only does it require high resolution, but also a stress-free optical component, which ensures that the observed birefringence is from the sample and not from the optical element.
• Infinity plan Semi-apochromatic Plan S-Apo 5x/0.15 P objective. WD 20mm. Strain-free, no cover glass correction
• Infinity plan Semi-apochromatic Plan S-Apo 10x/0.30 P objective. WD 11mm. Strain-free, no cover glass correction
• Infinity plan Semi-apochromatic Plan S-Apo 20x/0.45 P objective. WD 3.0mm. Strain-free, with 0 mm cover glass correction
• Infinity plan Apochromatic Plan Apo 50x/0.80 P objective. WD 1mm. Strain-free, with 0 mm cover glass correction
• Infinity plan Apochromatic Plan Apo 100x/0.90 P objective. WD 1mm. Strain-free, with 0 mm cover glass correction
• Infinity plan 2x/0.06 objective. WD 9 mm. Strain-free, no cover glass correction
• Infinity plan 4x/0.10 objective. WD 20 mm. Strain-free, no cover glass correction
• Infinity plan 10x/0.25 objective. WD 10.2mm. Strain-free, no cover glass correction
• Infinity plan 20x/0.40 objective. WD 13.36 mm. Strain-free, with 0.17 mm cover glass correction
• Infinity plan 40x/0.65 objective. WD 0.7mm. Strain-free, with 0.17 mm cover glass correction
• Infinity plan 50x/0.80 objective. WD 0.3 mm. Strain-free, with 0.17 mm cover glass correction
• Infinity plan S60x/0.95 oil-immersion objective. WD 0.28 mm. Strain-free, with 0.17 mm cover glass correction
• Infinity plan S100x/1.25 oil-immersion objective. WD: 0.22 mm. Strain-free, with 0.17 mm cover glass correction

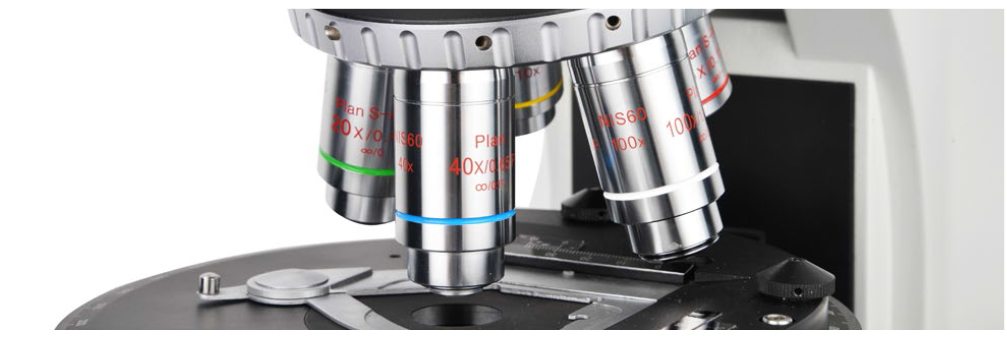

| Center Adjustable Sextuple Nosepiece
Up to 6 objectives can be mounted and all objectives positions are centerable.

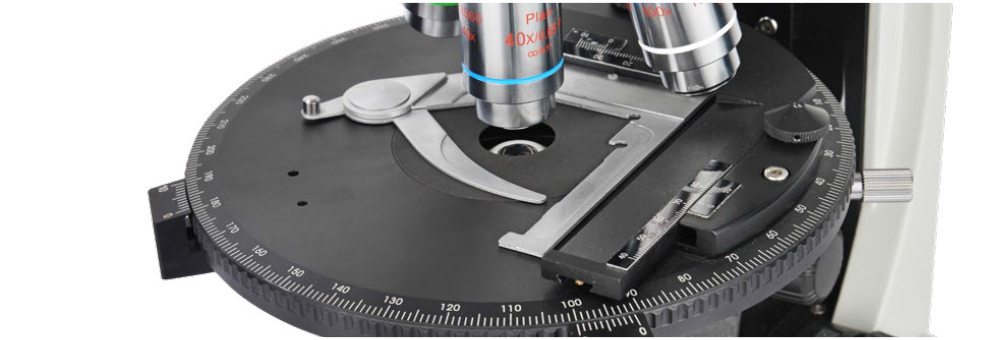

| High-precision Revolving Round Stage
The HemeraPL’s stage is large with diameter 190mm circular stage, 360° rotatable with vernier and two object clamps, pre-adjusted, and click-stops in 45 ° increments. The double-layer mechanical attachable stage X-Y movement 30x30mm can be easily mounted on a rotating carrier table, allowing easier sample movement and more efficient microscopic operation.

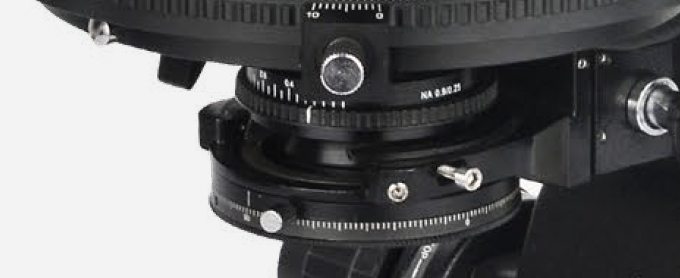

| Condenser
Strain-Free Swing Condenser NA0.9/0.25, Height adjustable, with iris diaphragm and 360° rotatable polarizer
| Intermediate Tube
The intermediate tube incorporates a Bertrand lens as standard, enabling both the observation and capture of conoscopic and orthoscopic images. Precisely and quickly interference images adjustment. The high precision slide-type analyzer can be rotated a full 360 ° with a precision vernier scale and provides unparalleled image contrast.

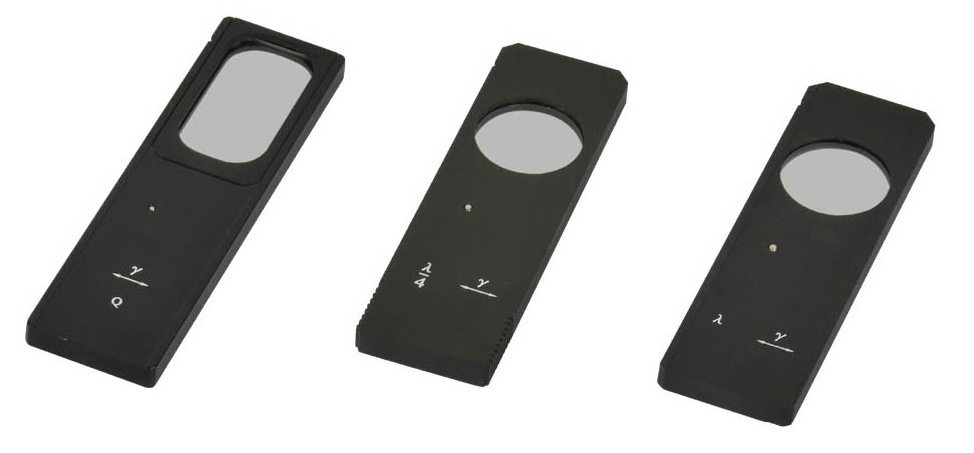

| Provides Multiple Types of Compensators
A variety of optical compensators (1 λ first red plate, 1/4 λ retardation plate, a quartz wedge) are available in HemeraPL that enhance the signal of weak birefringent materials, making them easier to see. At the same time, the compensator can also be used for qualitative measurements to determine multiple horizontal delays.

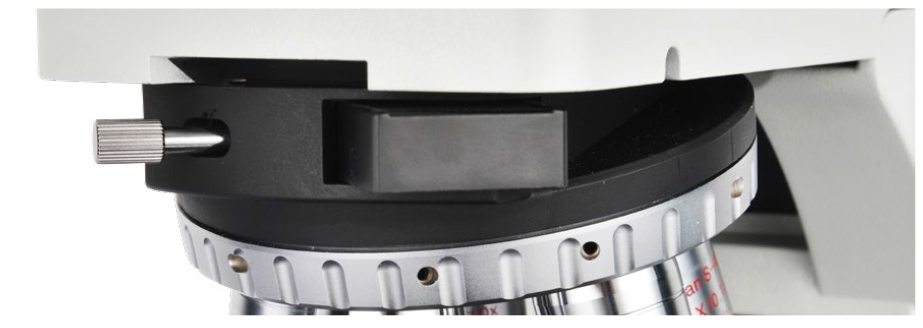

| Compensator Slot
The HemeraPL adopts a standard compensator slot. Therefore, various compensators can be used to enhance the advanced quantitative measurement of the signal of the weak birefringent material.

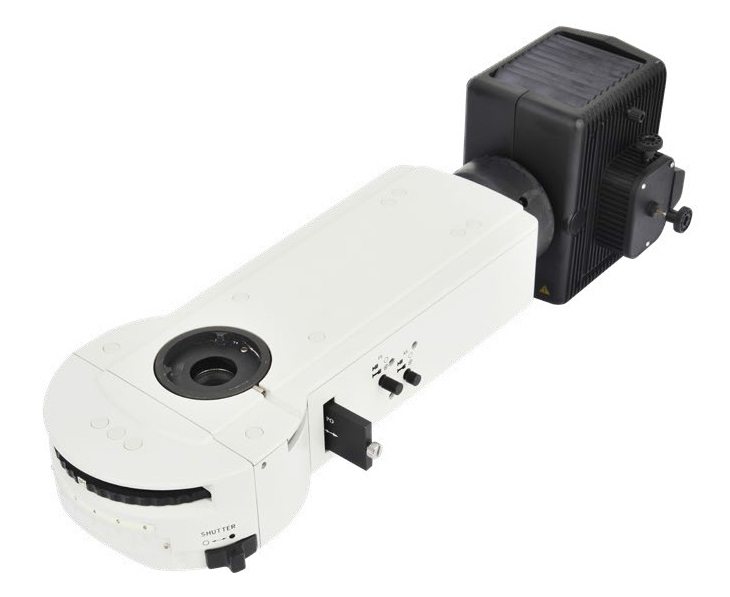

| Rotary Observation Module Conversion Device with Polarizer Reflected Light Source
Up to 6 observation modules can be placed in the rotating disc structure, while providing full extension capacity can be quickly switched. Easy to use and improve work efficiency with just one touch. Equipped with with 100W Mercury Lamp Housing

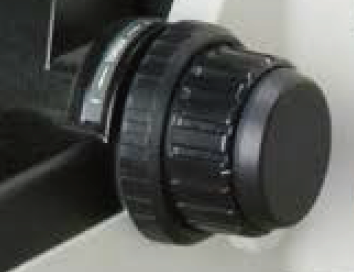

| Focusing
Coaxial coarse and fine adjustment, 100 graduations, 1 μm precision, 100 μm per rotation, total travel range is approximately 35 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control. The focusing knobs can be switched from left to right according to the user’s preference

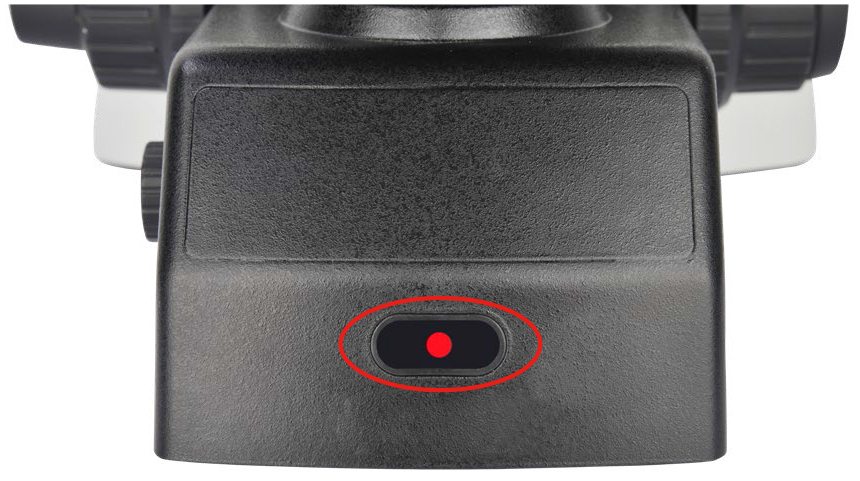

| ECO Function
The transmitted light would be off automatically after 30 minutes from operators leave. It can not only save energy, but also keep the lamp life.

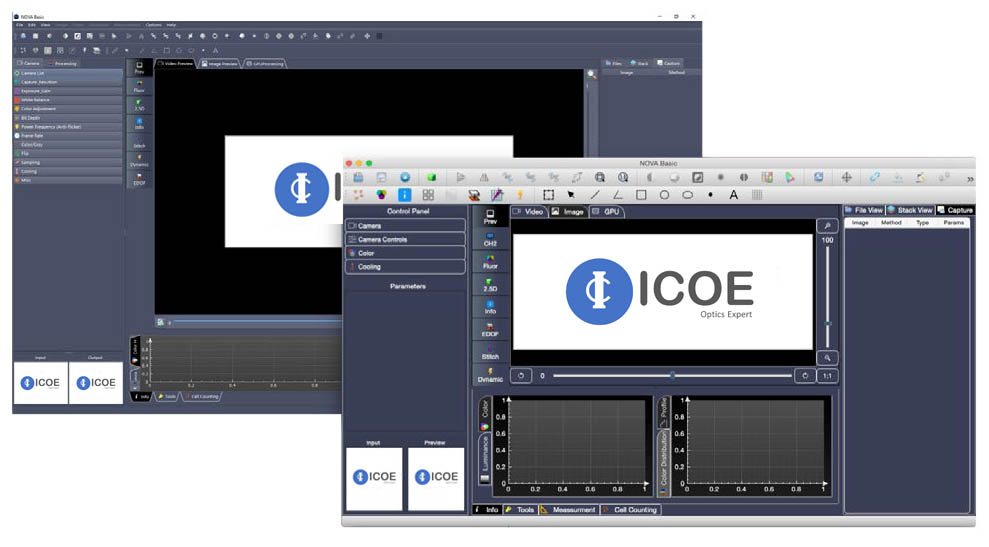

| Image Analysis System
Today, the research work environment requires instruments that can be adapted to each person’s different workflow. NOVA Basic can also serve as an observation instrument for today’s popular operating systems. NOVA Basic microscopic image analysis software allows seamless integration between acquisition, processing, measurement and microscope.

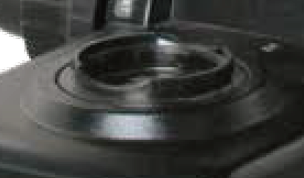

| Kohler Illumination System with Uniform Illumination
Kohler illumination is praised as the perfect micro-illumination system, which can provide uniform and bright lighting of the full field of view, and is the key of digital microscopic imaging. On this basis, the standard lighting for halogen lamps (optional LED lighting) makes the microscopic imaging more realistic and the results are highly repeatable.

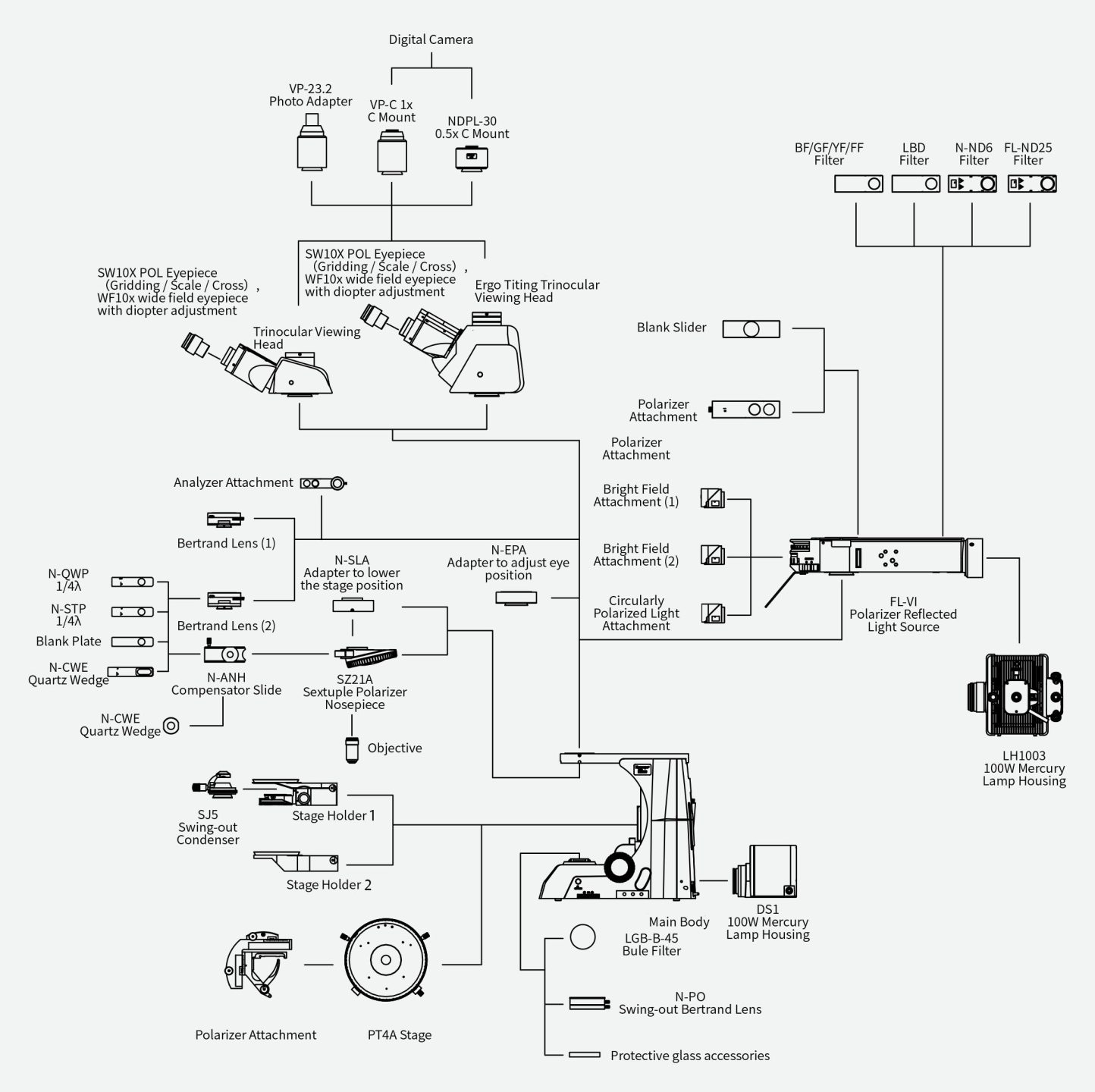

System Layout
Product Dimensions
Product Specifications and Models
| Model | HemeraPL-T | HemeraPL-R | HemeraPL-TR | HemeraPL-ER | HemeraPL-ETR | |
| Optical System | The enhanced infinity system of the HemeraPL consists of super wide field SFWF 10×25 mm eyepieces, high numerical aperture parfocal objectives. This tube lens reduces the angle of the light rays passing through the optics and as a direct result significantly improves the chromatic aberration corrections and contrast. The objectives with larger diameter enable much higher numerical apertures improving the overall resolving power of the optical system | ● | ● | ● | ● | ● |
| Viewing head | Siedentopf trinocular with 30° inclined Ø 30mm tubes. Interpupillary distance 47-78mm, with diopter adjustment on both eyepieces, trinocular port with 3-positions beamsplitter (0:100/ 100:0/ 80:20) | ● | ● | ● | ||
| Ergonomic 0 to 35° tilting trinocular head, interpupillary distance between 47-78 mm and photo tube with a standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces | ● | ● | ||||
| Eyepiece | Super wide field SWF 10x/25 mm, Ø30mm tubes | ●● | ○ | ○ | ○ | ○ |
| Super wide field SWF 10x/25 eyepiece with micrometer scale for Ø30mm tubes | ● | ○ | ○ | ○ | ○ | |
| Super wide field SWF 10x/25 eyepiece with crosshairs for Ø30mm tubes | ○ | ○ | ○ | ○ | ○ | |
| Super wide field SWF 10x/25 eyepiece with grid for Ø30mm tubes | ○ | ○ | ○ | ○ | ○ | |
| Extended wide field EWF 10x/22 mm, Ø30mm tubes | ○ | ●● | ●● | ●● | ●● | |
| Extended wide field SWF 10x/22 eyepiece with micrometer scale for Ø30mm tubes | ○ | ● | ● | ● | ● | |
| Extended wide field SWF 10x/22 eyepiece with crosshairs for Ø30mm tubes | ○ | ○ | ○ | ○ | ○ | |
| Extended wide field SWF 10x/22 eyepiece with grid for Ø30mm tubes | ○ | ○ | ○ | ○ | ○ | |
| Intermediate Tube | The intermediate tube incorporates a Bertrand lens as standard, enabling both the observation and capture of conoscopic and orthoscopic images. Precisely and quickly interference images adjustment. The high precision slide-type analyzer can be rotated a full 360 ° with a precision vernier scale and provides unparalleled image contrast. | ● | ● | ● | ● | ● |
| Nosepiece | Revolving, center adjustable sextuple reversed nosepiece with a standard compensator slot. Various compensators can be used to enhance the advanced quantitative measurement of the signal of the weak birefringent material. | ● | ● | ● | ● | ● |
| Compensators | 1 λ first red plate | ● | ● | ● | ● | ● |
| 1/4 λ retardation plate | ● | ● | ● | ● | ● | |
| Quartz wedge | ● | ● | ● | ● | ● | |
| Objective | Infinity plan Semi-apochromatic Plan S-Apo 5x/0.15 P objective. WD 20mm. Strain-free, no cover glass correction | ● | ● | ● | ● | ● |
| Infinity plan Semi-apochromatic Plan S-Apo 10x/0.30 P objective. WD 11mm. Strain-free, no cover glass correction | ○ | ● | ● | ● | ● | |
| Infinity plan Semi-apochromatic Plan S-Apo 20x/0.45 P objective. WD 3.0mm. Strain-free, with 0 mm cover glass correction | ○ | ● | ● | ● | ● | |
| Infinity plan Apochromatic Plan Apo 50x/0.80 P objective. WD 1mm. Strain-free, with 0 mm cover glass correction | ○ | ● | ● | ● | ● | |
| Infinity plan Apochromatic Plan Apo 100x/0.90 P objective. WD 1mm. Strain-free, with 0 mm cover glass correction | ○ | ● | ● | ● | ● | |
| Infinity plan 2x/0.06 objective. WD 9 mm. Strain-free, no cover glass correction | ○ | ● | ● | ● | ● | |
| Infinity plan 4x/0.10 objective. WD 20 mm. Strain-free, no cover glass correction | ● | ○ | ○ | ○ | ○ | |
| Infinity plan 10x/0.25 objective. WD 10.2mm. Strain-free, no cover glass correction | ● | ○ | ○ | ○ | ○ | |
| Infinity plan 20x/0.40 objective. WD 13.36 mm. Strain-free, with 0.17 mm cover glass correction | ● | ○ | ○ | ○ | ○ | |
| Infinity plan 40x/0.65 objective. WD 0.7mm. Strain-free, with 0.17 mm cover glass correction | ● | ○ | ● | ○ | ● | |
| Infinity plan 50x/0.80 objective. WD 0.3 mm. Strain-free, with 0.17 mm cover glass correction | ○ | ○ | ○ | ○ | ○ | |
| Infinity plan S60x/0.95 oil-immersion objective. WD 0.28 mm. Strain-free, with 0.17 mm cover glass correction | ○ | ○ | ○ | ○ | ○ | |
| Infinity plan S100x/1.25 oil-immersion objective. WD: 0.22 mm. Strain-free, with 0.17 mm cover glass correction | ● | ○ | ● | ○ | ● | |
| Conversion Device for Reflected Light | Rotary observation module conversion device with polarizer reflected light source, up to six observation modules can be placed in the rotating structure. Comes with brightfield and brightfield with ND filter positions, with Polarizer plate for reflected light source | / | ● | ● | ● | ● |
| Revolving Round Stage | High-precision Revolving Round Stage,Diameter φ190mm,Center Adjustable,360° Scale and Minium Division 1° ,Minium reading 6´ by Means of Vernier Scale,45° Click Stop Knob |
● | ● | ● | ● | ● |
| Attachable stage | Attacheable stage, moving Range 30mmX30mm | ● | ● | ● | ● | ● |
| Focusing | Coaxial coarse and fine adjustments with 100 graduations. Precision 1 μm, 0.1 mm per rotation. Total travel approximately 35 mm, rack-stop for protection of slides and objectives. Friction adjustment | ● | ● | ● | ● | ● |
| Condenser | Strain-Free Swing Condenser NA0.9/0.25, Height adjustable, with iris diaphragm and 360° rotatable polarizer | ● | / | ● | / | ● |
| Transmitted Light | Kohler illumination, 12V/100W halogen illumination (LED ilumination optional) with internal 100-240Vac power supply. Intensity adjustable, comes with two push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kinds of samplesm, and with swing-out polarizer | ● | / | ● | / | ● |
| Reflected Light | Kohler illumination, 12V/100W halogen lamp adjustable with 2 built-in neutral density filters and internal 100-240V power supply | / | ● | ● | ● | ● |
| Analyzer | 360º Dial Rotation Minimum Scale Reading: 0.1º (Vernier Scale) | ● | ● | ● | ● | ● |

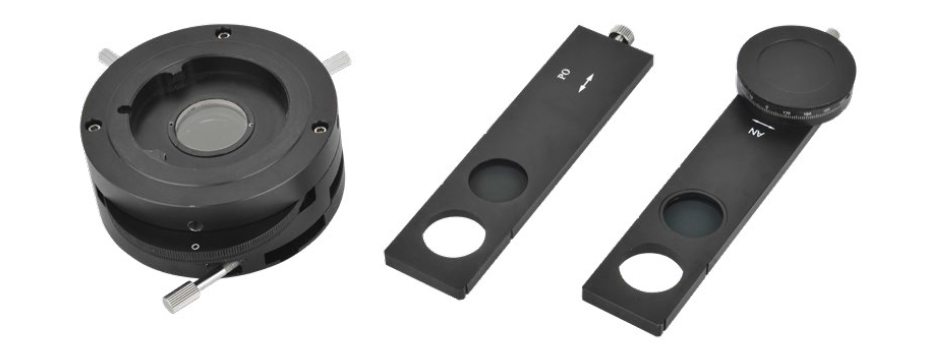

| Polarizer | 360° Rotatable 0° Position Adjustable Polarizer, used for transmitted light | ● | ● | ● | ||
| Fixed polarizer, used for reflected light | ● | ● | ● | ● | ||
| ECO function | The illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy | ● | ● | ● | ||
| Others | With 0.01mm micrometer, carrying grip at the back of the microscope for safe transportation and Allen screwdriver in integrated holder | ● | ● | ● | ● | ● |
| Supplied with | Power cord, 500 mA 250 V spare fuse, 5 ml immersion oil, dust cover and user manual, all packed in carton shipment box | ● | ● | ● | ● | ● |
| C mount | C-mount with 1x for C-mount camera | ○ | ○ | ○ | ○ | ○ |
| C-mount with high resolution relay 0.50x objective for 1/2″ C-mount camera | ○ | ○ | ○ | ○ | ○ | |
| C-mount with high resolution relay 0.35x objective for 1/3″ C-mount camera | ○ | ○ | ○ | ○ | ○ | |
| C-mount with high resolution relay 0.63x objective for 2/3″ C-mount camera | ○ | ○ | ○ | ○ | ○ | |
| Digital camera | Various digital camera models are optional, come with image process software and basic analysis function | ○ | ○ | ○ | ○ | ○ |
Note: “●” means standard configuration, “○” means optional items
Optional Accessories and Spare Parts
| Order No. | Descriptions |
| HMP001 | Seidentopf trinoculear head, inclined at 30°, interpupilary distance 47-78mm |
| HMP002 | Seidentopf binocular head, inclined at 30°, interpupilary distance 47-78mm |
| HMP003 | Ergo. titling trinocular head, adjustable from 0° to 35°, interpupilary distance 47-78mm |
| HMP004 | Super wide field SW10x/25 mm eyepiece, Ø30mm tube |
| HMP005 | Super wide field SW10x/25 mm eyepiece with cross-hair, Ø30mm tube |
| HMP006 | Extra wide field EW10x/22mm eyepiece, Ø30mm tube with diopter adjustement |
| HMP007 | Extra wide field EW10x/22mm eyepiece with cross-hair, Ø30mm tube |
| HMP008 | Wide field WF 12.5x/17.5mm eyepiece, Ø30mm tube |
| HMP009 | Wide field WF 15x/16mm eyepiece, Ø30mm tube |
| HMP010 | Wide field WF 20x/12mm eyepiece, Ø30mm tube |
| HMP011 | Super wide field SW10x POL eyepiece, Ø30mm tube |
| HMP012 | Reticle plate |
| HMP013 | Short eyecup for eyepiece |
| HMP014 | Long eyecup for eyepiece |
| HMP015 | Manual sextuple reversed nosepiece |
| HMP016 | Manual septuple reversed nosepiece |
| HMP017 | Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 5x/0.15 P, WD 20mm. Strain-free, no cover glass correction |
| HMP018 | Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 10x/0.30 P, WD 11mm. Strain-free, no cover glass correction |
| HMP019 | Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 20x/0.45 P, WD 3.0mm. Strain-free, no cover glass correction |
| HMP020 | Infinity Plan Apochromatic Polarizing Objective, Apo 50x/0.80 P, WD 1mm. Strain-free, no cover glass correction |
| HMP021 | Infinity Plan Apochromatic Polarizing Objective, Apo 100x/0.90 P, WD 1mm. Strain-free, no cover glass correction |
| HMP022 | Infinity Plan Polarizing Objective, Plan 2x/0.06 P, WD 9mm. Strain-free, no cover glass correction |
| HMP023 | Infinity Plan Polarizing Objective, Plan 4x/0.10 P, WD 30 mm. Strain-free, with 0.17 mm cover glass correction |
| HMP024 | Infinity Plan Polarizing Objective, Plan 10x/0.25 P, WD 10.2mm. Strain-free, no cover glass correction |
| HMP025 | Infinity Plan Polarizing Objective, Plan 20x/0.40 P, WD 13.36mm. Strain-free, with 0.17 mm cover glass correction |
| HMP026 | Infinity Plan Polarizing Objective, Plan 40x/0.65 P, WD 0.7mm. Strain-free, with 0.17 mm cover glass correction |
| HMP027 | Infinity Plan Polarizing Objective, Plan 50x/0.80 P, WD 0.3 mm. Strain-free, with 0.17 mm cover glass correction |
| HMP028 | Infinity Plan Polarizing Objective, Plan 60x/0.95 P, WD 0.3 mm. Strain-free, with 0.17 mm cover glass correction |
| HMP029 | Infinity Plan Polarizing Objective, Plan S100x/1.25 P, oil, WD 0.22mm, Strain-free, with 0.17mm cover glass correction |
| HMP030 | Infinity Plan Polarizing Objective, Plan S100x/0.5-1.25 P, oil, with iris diaphragm, WD 0.2mm, Strain-free, 0.17mm cover glass correction |
| HMP031 | Height adjustable Abbe N.A.1.25 condenser with numerical aperture engravings. Working distance 10.2 mm |
| HMP032 | Abbe condenser 0.9/0.25 with swing-out front lens |
| HMP033 | Zernike phase contrast set, with Plan Phase 10/20/S40/S100x objectives, phase contrast condenser, telescope and green filter |
| HMP034 | Dark field condenser (Dry) |
| HMP035 | Dark field condenser (Oil) |
| HMP036 | Turrent DIC condenser (rotating DIC and BF, without DIC prisms) |
| HMP037 | DIC prism for turrent condenser (used with plan semi-apo 10x objective) |
| HMP038 | DIC prism for turrent condenser (used with plan semi-apo 20x objective) |
| HMP039 | DIC prism for turrent condenser (used with plan semi-apo 40x objective) |
| HMP040 | DIC prism for turrent condenser (used with plan semi-apo 100x objective) |
| HMP041 | Slider with DIC prism for nosepiece (used with plan semi-apo 10x and 20x objectives) |
| HMP042 | Slider with DIC prism for nosepiece (used with plan semi-apo 40x and 100x objectives ) |
| HMP043 | DIC polarization filter for transmitted light |
| HMP044 | Simple polarization kit, consisting of transmitted polarizer in slider and transmitted analyzer |
| HMP045 | Bertrand lens for conoscopy observation. Swing-out type, focusable and centrable |
| HMP046 | Reflected illumination device, up to six observation modules can be placed in the rotating structure. Comes with brightfield and brightfield with ND filter positions |
| HMP047 | Compensator Slider |
| HMP048 | Optical compensator: 1° order red (1 lambda), (gypsum) |
| HMP049 | Optical compensator: 1/4λ guarter-wave plate (mica) |
| HMP050 | Optical compensator: Quartz wedge |
| HMP051 | Round stage for polarization microscope, diameter Φ190mm, center adjustable, 360° scale, minimum divison 1°, minimum reading 6′ by means of vernier scale, 45° click stop knob |
| HMP053 | Blue filter, Ø 45 mm, fits on lamphouse |
| HMP054 | Green filter, Ø 45 mm, fits on lamphouse |
| HMP055 | Yellow filter, Ø 45 mm, fits on lamphouse |
| HMP056 | LED illuminator replacement unit |
| HMP057 | 100W/24V halogen replacement bulb |
| HMP058 | 100W HBO mercury vapor lamp for transmitted illumination |
| HMP059 | Fuses 500 mA 250 V, 10 pieces, (For Hemera models with LED) |
| HMP060 | Fuses 5 A 250 V, 10 pieces (For Hemera models with 100 W halogen) |
| HMP061 | Epi-Fluorescent Attachment: including filter block system (max. six blocks acceptable); fluorescent filter block B & G excitation filter block included; 100W GCQ ultra hi-voltage spherical mercury lamp; power supplier NFP-1, 220V/110V interchangeable, digital display and timer; protection barrier to resist the ultraviolet light; fluorescent oil. |
| HMP062 | Empty filter cube for 6-position fluorescence attachment |
| HMP063 | Filter set for blue excitation, EX: 460-490 nm BP, DM: 500 nm, EM: 520 nm LP (needs empty filter cube) |
| HMP064 | Filter set for green excitation, EX: 510-550 nm BP, DM: 570 nm, EM: 590 nm LP (needs empty filter cube) |
| HMP065 | Filter set for violet excitation, EX: 400-410 nm BP, DM: 455 nm, EM: 460 nm LP (needs empty filter cube) |
| HMP066 | Filter set for ultra-violet excitation, EX: 330-385 nm BP, DM: 400 nm, EM: 420 nm LP (needs empty filter cube) |
| HMP067 | Fitler set for red excitation: BP620-650, Dichroic Mirror: DM660, Barrier: BA670-750 (needs empty filter cube) |
| HMP068 | 100W HBO mercury vapor lamp for reflected illumination |
| HMP069 | 100W power suplier NFP-1 |
| HMP070 | FL-ND6 filter |
| HMP071 | FL-ND25 filter |
| HMP072 | C-mount with 1x for C-mount camera |
| HMP073 | C-mount with high resolution relay 0.50x objective for 1/2″ C-mount camera |
| HMP074 | C-mount with high resolution relay 0.35x objective for 1/3″ C-mount camera |
| HMP075 | C-mount with high resolution relay 0.63x objective for 2/3″ C-mount camera |
| HMP076 | Universal Ø 23.2 mm tube adapter with built-in 2x lens for SLR photo camera with APS-C sensor. T2 ring adapter is needed |
| HMP077 | T2 ring for Nikon D SLR digital camera |
| HMP078 | T2 ring for Canon EOS SLR digital camera |
| HMP079 | Attachment kits of multi-viewing microscopes for 5 users |
| HMP080 | Attachment kits of multi-viewing microscopes for 2 users |
| HMP081 | Attachment kits of multi-viewing microscopes for 2 users (face to face) |
| HMP082 | Attachment kits of multi-viewing microscopes for 3 users |
| HMP083 | Attachment kits of multi-viewing microscopes for 10 users |
| HMP084 | Eyepoint regulator |
| HMP085 | Nosepiece deckboard |
| HMP086 | Specimen presser |
| HMP087 | Stage micrometer |
| *** | Digital Camera (Please refer to our digital camera brochure) |
