Description

User-Friendly Design and Outstanding Optical Performance

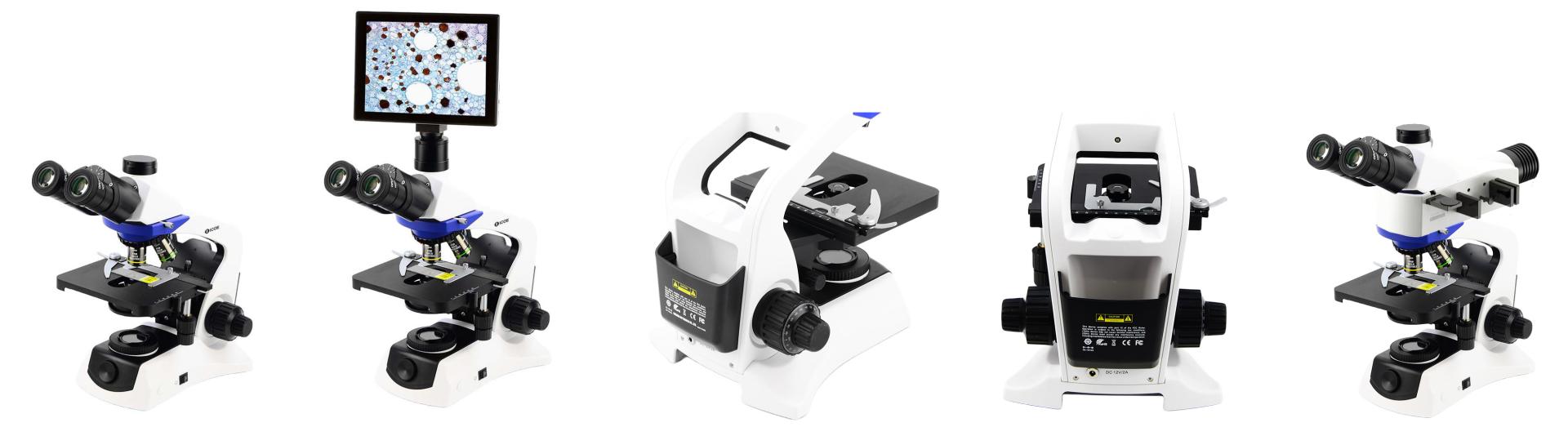

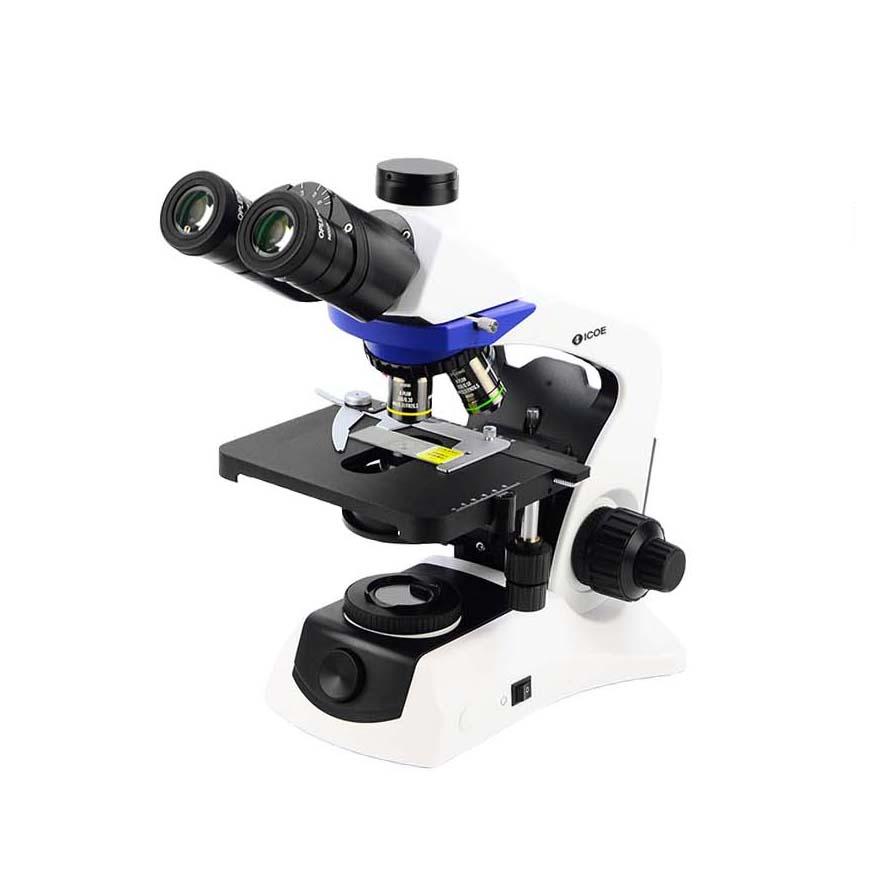

The ICOE EXEC30 microscope with “plug and play” capability is the ideal tool to make teaching entry-level college and university Life Science courses easy and fun for the instructor and the student.

Student-friendly features such as the pre-focused, pre-centered condenser and the preset diopter, which prevent incorrect adjustments, provide more time for hands-on teaching.

A storage compartment on the back of the EXEC30 microscope makes it easy to stow the power cable after use, and also allows easy carrying, easy lifting and protection against microscope component damage.

Features

1. Excellent Optical Performance for Flat Images

The microscope employs high quality plan achromat objectives, which provide clear images with high image flatness over a wide field of view. This helps users view specimens clearly and evenly during routine microscope observations. parfocal distance 45mm

2. Body structure

It adopts aluminum alloy one-piece molding technology to wrap the ABS environmentally friendly material body. Adapt to 100~230V wide voltage power supply.

3. Lighting system

Built-in LED lighting system, 3W output with constant color temperature of 6500K, light source life of not less than 30,000 hours; white light lighting, the light outlet supports the installation of 45mm filters.

4. Focusing system

Both left and right hands have coarse and fine adjustments that are synchronously adjustable. The minimum step accuracy of power-assisted fine adjustment is 2 μm, and the maximum stroke is 16 mm. It is equipped with tension adjustment and anti-collision height limit device.

5. Stage & Slice Clip

The right-hand low-position double-layer mechanical stage adopts a rack-and-pinion transmission structure, which is sturdy and durable and has a movement range of 76 mm × 33 mm.

Slow rebound left-hand sectioning clip, which can drive heavy samples such as cell counting pools and counting plates.

6. Condenser

Pre-centered Kohler condenser NA 0.1~1.1 with diaphragm indicator scale mark, supports various lighting methods such as bright field and polarized light.

7. Observation Tube

30° hinged trinocular observation tube, 50/50 light split, eye point height adjustable, interpupillary distance adjustment range 48-76mm.

8. Eyepiece

30mm diameter wide field of view 10X/field number ≥ 22, adjustable diopter (-5~+5) of both eyes.

9. Nosepiece

The microscope body has an integrated inward-tilt four-hole objective turret with RMS international standard objective lens thread interface.

10. Objective lens

Standard come with plan achromatic objective lens set 4X (N.A.≥0.10), 10X (N.A.≥0.25), 40X (N.A.≥0.60), 100X (N.A.≥1.25)

11. Anti-mildew device

Optical imaging components such as observation tubes, eyepieces, objective lenses, etc. have been treated with anti-bacterial and anti-mildew treatments.

12. Storage Compartment on the Back

A storage compartment on the back of the EXEC30 microscope makes it easy to stow the power cable after use, and also allows easy carrying, easy lifting and protection against microscope component damage.

Optional Kits

1. Fluorescent Attachment

Pull-out LED fluorescent illuminator, 30,000 hours maintenance-free. Excitation block compatible with all common dyes: DAPI, FITC, TRITC, TxRed…etc.

2. Camera Interface & Camera

C mount: 0.5X adjustable synchronization standard C-mount adapter

Camera: 5.1-megapixel high-performance CMOS color camera, with image process software:

Digital Tablet: 10.5″ LCD tablet with touch screen, with 4K 8MP integrated camera, come with image process software

3. Metallurgical Reflected & Transmitted Light Observation

Product Models & Specifications
