Description
Affordable Innovation for The First-Time-Scientist

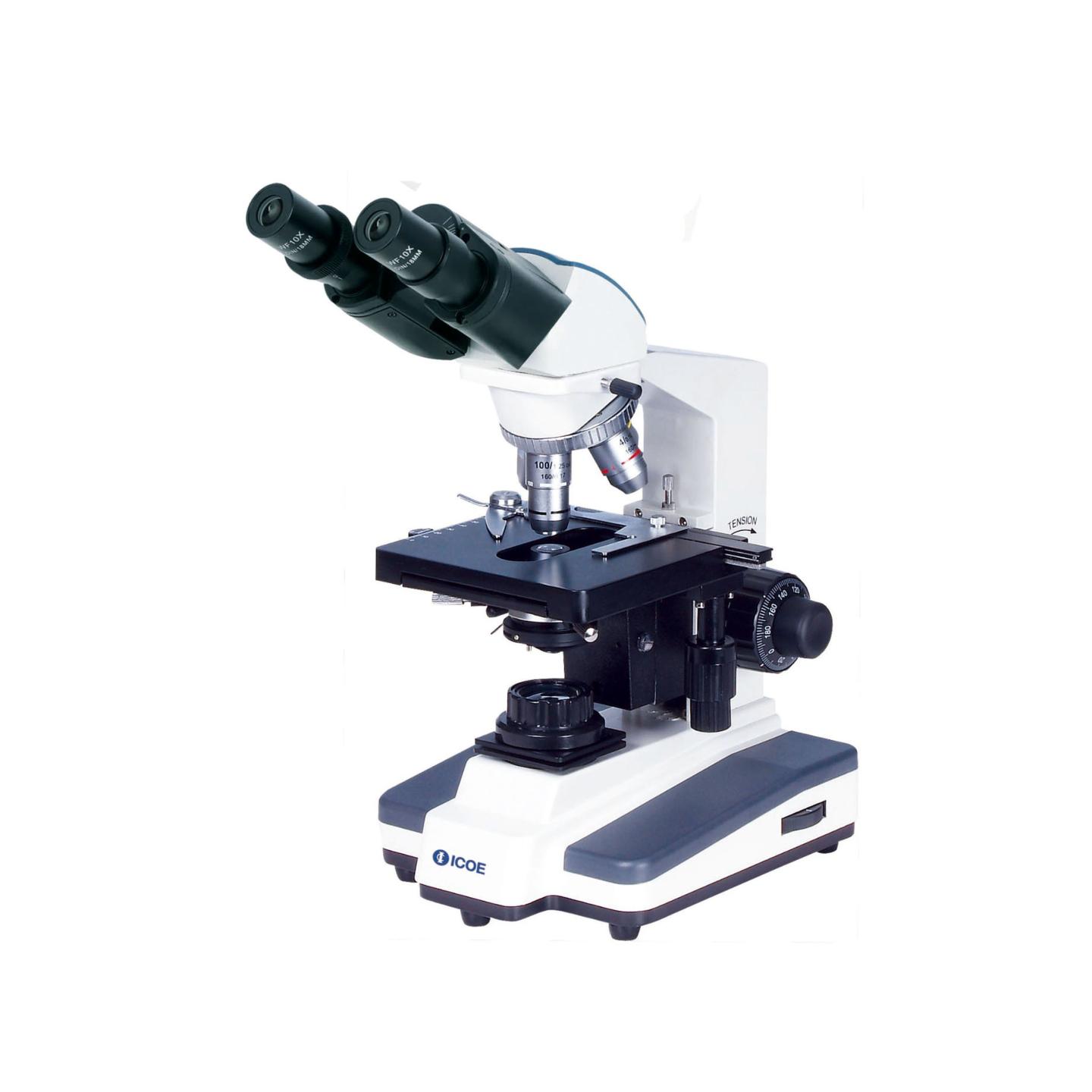

For slightly more advanced students in biology or college life science classrooms, the ICOE BM29/BM31 series compound microscope is compact, maintenance-free and easy to use to provide trouble free operation each day.
Equipped with a mechanical stage and NA1.25 Abbe condenser, the BM29/BM31 series can be configured with rotatable monocular or binocular tubes for shared viewing and easy storage. Trinocular tube is also possible to go digital.
With many years microscope design and manufacturing experience, the BM29/BM31 series student microscope provides students with the capabilities they need to study the finest details in all the Life Sciences.
Features
1. Robust construction
- 1). Maintenance-free, sealed, brass shaft, focus mechanism; the same design that is used in ICOE clinical microscopes provides accurate focus control over the life of the microscope
- 2). Spring-loaded, high-magnification objectives prevent broken specimen slides
- 3). Designed to International Safety Standards
2. Optimized illumination and optics
- 1). LED illumination saves the cost of replacement lamps and provides a cool white light for over 60,000 hours of average use at 80 % lower energy consumption
- 2). BM29/BM31 microscope’s illumination system provides an evenly illuminated field of view for accurate specimen viewing
- 3). The illumination system provides stable, true daylight quality with a wide brightness adjustable range.
- 4). Superb optical performance as a result of the illumination, objective, viewing tube, and eyepiece working seamlessly together
3. Student friendly
- 1). Coaxial focus mechanism for intuitive control
- 2). Compact size with small footprint for easy storage and carrying
- 3). Continuous light intensity control for comfortable viewing with specimens of various thickness and color
- 4). The binocular and monocular tubes provides continuous 360° tube rotation for shared viewing and easy storage
4. Flexibility
- 1). Pre-configured outfits for easy ordering
- 2). Choice of monocular or binocular tube depending on budget
- 3). Digital version also possible with trinocular tube
Product Models & Specifications

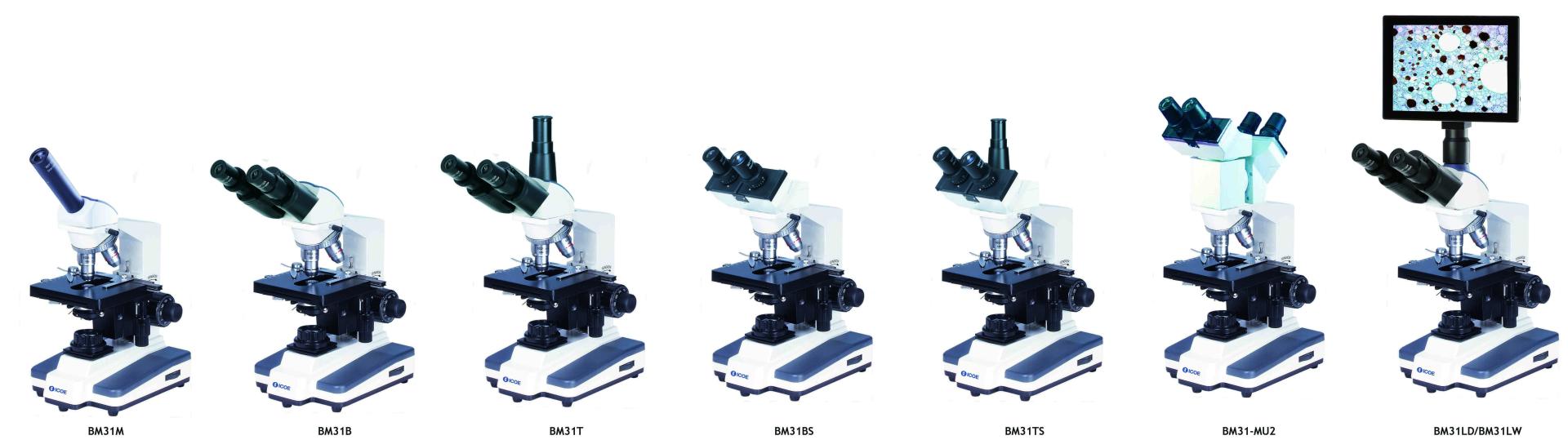

1 – BM31 Series Microscope
| Model | BM31M | BM31B | BM31T | BM31BS | BM31TS | BM31-MU2 | BM31LD | |
| Viewing head | Monocular viewing head inclined at 45°, 360° rotation | ● | ||||||
| Seidentopf binocular viewing head inclined at 30°, interpupillary 55-75m, 360° rotation | ● | |||||||
| Seidentopf Trinocular viewing head inclined at 30°, interpupillary 55-75m, 360° rotation, light distributiion between eyetube & phototube 50:50 | ● | ● | ||||||
| Sliding binocular viewing head inclined at 30°, interpupillary 55-75m, 360° rotation | ● | |||||||
| Sliding Trinocular viewing head inclined at 30°, interpupillary 55-75m, 360° rotation, light distributiion between eyetube & phototube 50:50 | ● | |||||||
| Multi-viewing head for 2 users | ● | |||||||
| Digital Part | 9.5″ LCD Attachment with integrated display camera, with IMX307, 1/2.8″ sensor, 2.9×2.9um, 2m Mega pixel, CMOS chip, 1x USB2.0 port for connecting USB flash drive/mouse, 1x USB2.0 port for connecting mouse, 1 x USB2.0 port for connecting to computer, 1 x HDMI port to connecting screen monitor, Image: 1920×1080@60FPS, Video: 1920×1080@30FPS, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | ○ | ○ | ● | ||||
| 10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip, 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | ○ | ○ | ○ | |||||
| Eyepiece | A pair of WF10x/18mm eyepiece | ●● | ●● | ●● | ●● | ●● | ●●●● | ●● |
| Nosepiece | Reversed quadruple ball bearings revolving nosepiece | ● | ● | ● | ● | ● | ● | ● |
| Objective | All with anti-fungus treatment. | ● | ● | ● | ● | ● | ● | ● |
| Achromatic objective 4x/0.10 | ● | ● | ● | ● | ● | ● | ● | |
| Achromatic objective 10x/0.25 | ● | ● | ● | ● | ● | ● | ● | |
| Achromatic objective 40x/0.65 | ● | ● | ● | ● | ● | ● | ● | |
| Achromatic objective 100x/1.25 (oil) | ● | ● | ● | ● | ● | ● | ● | |
| Total magnification | 40x-1000x | ● | ● | ● | ● | ● | ● | ● |
| Stage | Double layer mechanical stage, with size: 130x140mm, moving range: 75x50mm, Vernier scale on the two axes, | ● | ● | ● | ● | ● | ● | ● |
| Focusing | accuracy: 0.1mm, with 3D movement on XYZ, Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 25mm; fine precision: 0.002mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device | ● | ● | ● | ● | ● | ● | ● |
| Condenser | Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm | ● | ● | ● | ● | ● | ● | ● |
| Illumination | 3W High brightness energy-saving LED illumination for long life, brightness adjustable | ● | ● | ● | ● | ● | ● | ● |
| Power | Multi-plug 100-240Vac/5Vdc external power supply | ● | ● | ● | ● | ● | ● | ● |
| Others | Dust cover, green filters, slim and easy to carry | ● | ● | ● | ● | ● | ● | ● |
| C mount | 0.5x C mount for digital camera | ○ | ○ | ○ | ○ | ○ | ○ | ● |
| 1x/0.3x/0.7x C mount is optional | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
2 – BM29 Series Microscope
| Model | BM29M | BM29B | BM29T | BM29BS | BM29TS | BM29LD | |
| Viewing head | Monocular viewing head inclined at 45°, 360° rotation | ● | |||||
| Seidentopf binocular viewing head inclined at 30°, interpupillary 55-75m, 360° rotation | ● | ||||||
| Seidentopf Trinocular viewing head inclined at 30°, interpupillary 55-75m, 360° rotation, light distributiion between eyetube & phototube 50:50 | ● | ● | |||||
| Sliding binocular viewing head inclined at 30°, interpupillary 55-75m, 360° rotation | ● | ||||||
| Sliding Trinocular viewing head inclined at 30°, interpupillary 55-75m, 360° rotation, light distributiion between eyetube & phototube 50:50 | ● | ||||||
| Digital Part | 9.5″ LCD Attachment with integrated display camera, with IMX307, 1/2.8″ sensor, 2.9×2.9um, 2m Mega pixel, CMOS chip, 1x USB2.0 port for connecting USB flash drive/mouse, 1x USB2.0 port for connecting mouse, 1 x USB2.0 port for connecting to computer, 1 x HDMI port to connecting screen monitor, Image: 1920×1080@60FPS, Video: 1920×1080@30FPS, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | ○ | ○ | ● | |||
| 10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip, 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | ○ | ○ | ○ | ||||
| Eyepiece | A pair of WF10x/18mm eyepiece | ●● | ●● | ●● | ●● | ●● | ●● |
| Nosepiece | Reversed quadruple ball bearings revolving nosepiece | ● | ● | ● | ● | ● | ● |
| Objective | All with anti-fungus treatment. | ● | ● | ● | ● | ● | ● |
| Achromatic objective 4x/0.10 | ● | ● | ● | ● | ● | ● | |
| Achromatic objective 10x/0.25 | ● | ● | ● | ● | ● | ● | |
| Achromatic objective 40x/0.65 | ● | ● | ● | ● | ● | ● | |
| Achromatic objective 100x/1.25 (oil) | ● | ● | ● | ● | ● | ● | |
| Total magnification | 40x-1000x | ● | ● | ● | ● | ● | ● |
| Stage | Double layer mechanical stage, with size: 120x130mm, moving range: 70x30mm, Vernier scale on the two axes, | ● | ● | ● | ● | ● | ● |
| Focusing | accuracy: 0.1mm, with 3D movement on XYZ, Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 15mm; fine precision: 0.002mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device | ● | ● | ● | ● | ● | ● |
| Condenser | Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm | ● | ● | ● | ● | ● | ● |
| Illumination | 3W High brightness energy-saving LED illumination for long life, brightness adjustable | ● | ● | ● | ● | ● | ● |
| Power | Multi-plug 100-240Vac/5Vdc external power supply | ● | ● | ● | ● | ● | ● |
| Others | Dust cover, green filters, slim and easy to carry | ● | ● | ● | ● | ● | ● |
| C mount | 0.5x C mount for digital camera | ○ | ○ | ○ | ○ | ○ | ● |
| 1x/0.3x/0.7x C mount is optional | ○ | ○ | ○ | ○ | ○ | ○ | |
