Specifications

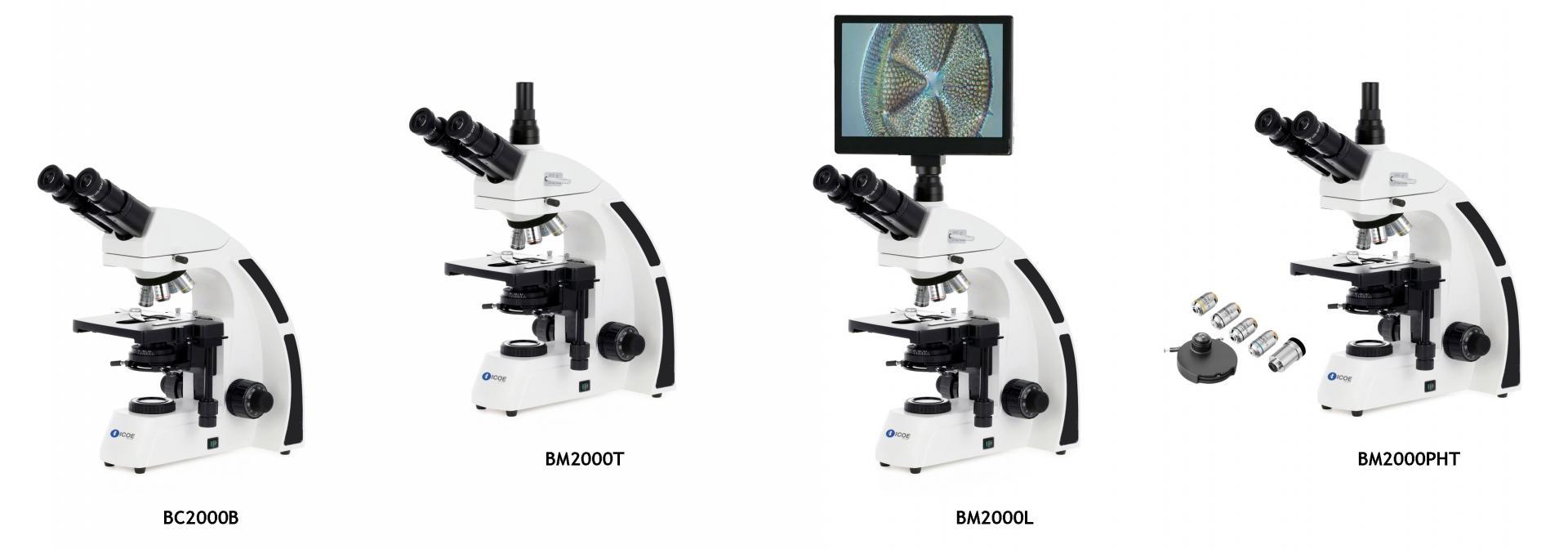

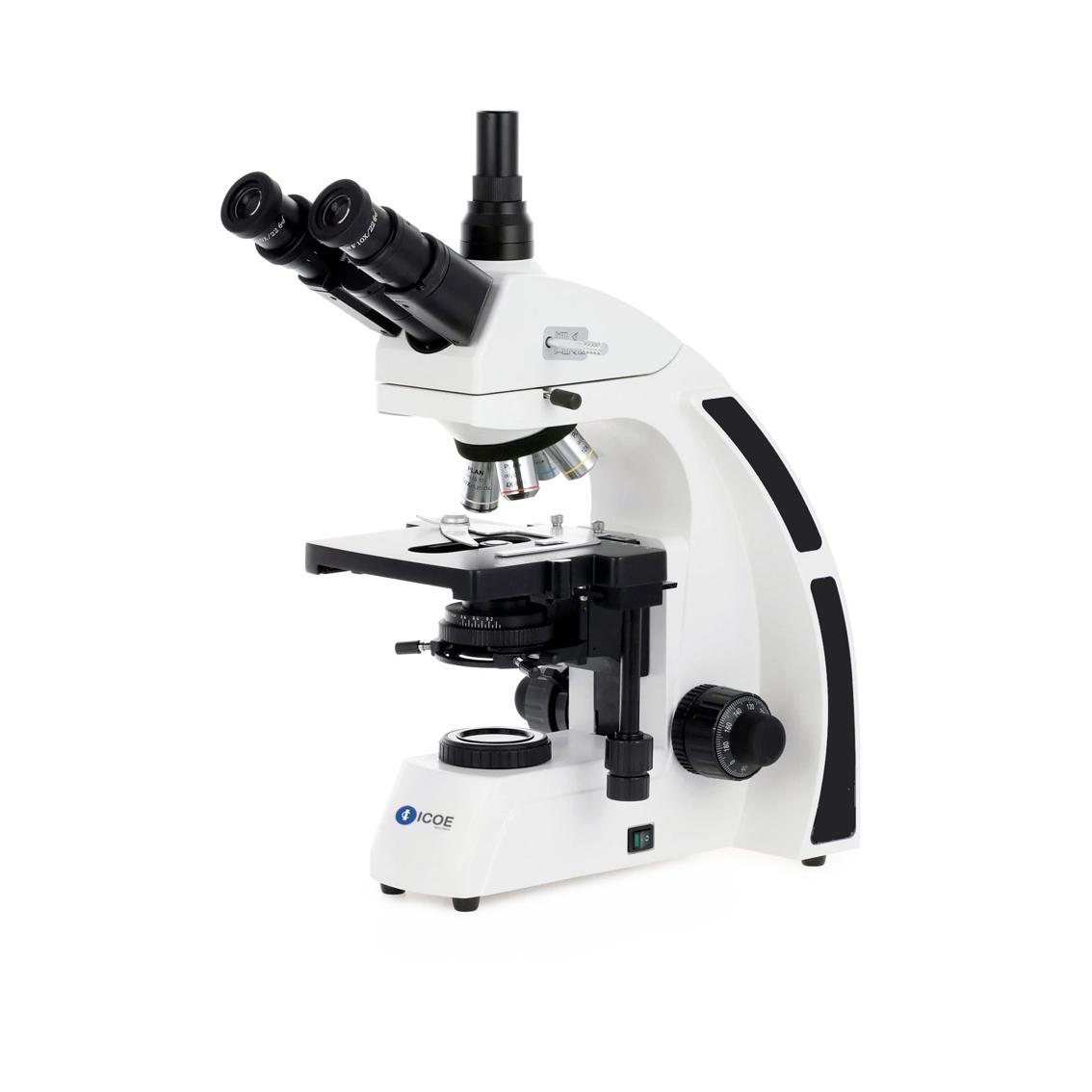

| Model | BC2000B | BC2000T | BC2000PHT | |
| Optical system | Infinity corrected optical system | ● | ● | ● |
| Viewing head | Seidentopf binocular head, inclined at 30°, interpupillary 48-75mm, dual visibility adjustable | ● | ||
| Seidentopf trinocular head, inclined at 30°, interpupillary 48-75mm, dual visibility adjustable, splitting ratio of eyepiece/camera: 100/0, 0/100 | ● | ● | ||
| Eyepiece | A pair of WF10x/22mm eyepiece | ● | ● | ● |
| Nosepiece | Reversed quintuple ball bearings revolving nosepiece | ● | ● | ● |
| Objective | Infinite plan achromatic objective 4x/0.10 | ● | ● | ● |
| Infinite plan achromatic objective 10x/0.25 | ● | ● | ● | |
| Infinite plan achromatic objective 20x/0.40 | ○ | ○ | ○ | |
| Infinite plan achromatic objective 40x/0.65, spring loaded | ● | ● | ● | |
| Infinite plan achromatic objective 40x/0.65, spring loaded, working distance: 0.7mm | ○ | ○ | ○ | |
| Infinite plan achromatic objective 60x/0.80, spring loaded | ○ | ○ | ○ | |
| Infinite plan achromatic objective 100x/1.25, spring loaded, oil | ● | ● | ● | |
| Infinite plan achromatic objective 100x/1.10, spring loaded, water | ○ | ○ | ○ | |
| Stage | Double layer mechanical stage, with size: 180x160mm, 80x50mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm | ● | ● | ● |
| Focusing | Integrated design, coaxial focus system with upper limited and tension adjustment, coarse stroke 37.7mm per rotation, fine precision: 0.002mm, fine stroke 0.2mm per rotation, moving range: 25mm, provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device | ● | ● | ● |
| Condenser | Abbe N.A. 1.25 condenser with aperture diaphragm | ● | ● | ● |
| Illumination | High brightness energy-saving S-LED illumination for long life, brightness adjustable, with Kohler illumination | ● | ● | ● |
| Power | Multi-plug 100-240Vac, 50/60Hz external power supply | ● | ● | ● |
| Others | Dust cover, spare fuse, blue & green filters, slim and easy to carry, support to reduce the fatigue during use, with carrying handle | ● | ● | ● |
| Phase contrast kit | Turret phase contrast set, including turret phase contrast condenser, infinite plan phase contrast objectives 4x, 20x, 40x & 100x, with centering telescope & green filter | ○ | ○ | ● |
| Fluorescent kit | Various LED fluorecent attachment available | ○ | ○ | ○ |
| Dark field kit | Dark field condensers available | ○ | ○ | ○ |
| C mount | 0.5x C mount for digital tablet | ○ | ○ | ● |
| Digital tablet | DP1 tablet with 10.5″ touchscreen, integrated with 4K 8MP camera, 1/2″ sensor, 2.0×2.0um, CMOS chip, with 1 x HDMI port, 2 x USB3.0 ports, 1 x USB2.0 port, 1x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, with Android OS system, built-in image process software | ○ | ○ | ○ |
